The filter media is made of high quality glass fiber filter material (pleated) and linear hot melt strip separator to minimize resistance to air.

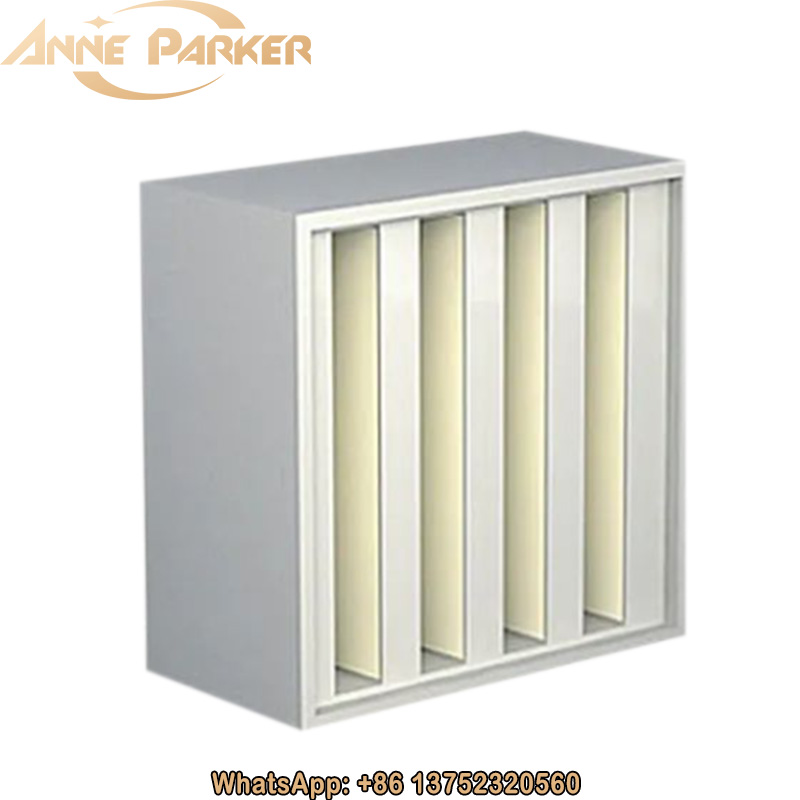

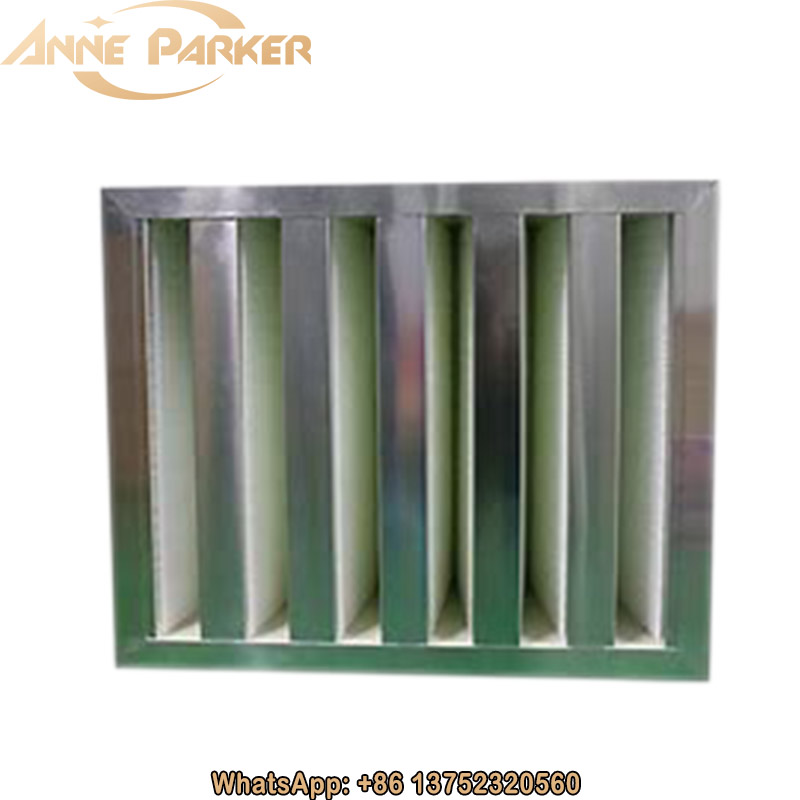

V Bank Type HEPA Carbon Air Filter
Excellent design, high density filter media, targeted filtration
The High efficiency HEPA filter has an excellent filtering effect on small particles in the air. The filter element is made of high quality glass fiber filter material (pleated) and linear hot melt strip separator to minimize resistance to air. V-shaped structure assembly, can accommodate more filter material.
Air volume up to 4000m/h, saving installation space The HEPA filter is designed for high air volume environments. Reduce the number of filters used in the fresh air system under the same air volume, save space and reduce energy consumption. The large filter area of Puricel II in existing systems ensures low resistance and reduced operating costs.
|
Frame |
Galvanized frame, stainless steel frame |
|
Filter media |
Moisture-proof flame retardant glass fiber filter material |
|
Thickness |
292mm |
|
Filtration efficiency |
H13/H14 (EN1822) |
|
Fire-protection rating |
UL900 in certification |
|
Continuous operating temperature |
≤70°C |
|
Suggested final resistance |
≤600 Pa |
|
Main application |
Final stage filtration for commercial and industrial ventilation and clean room ventilation and air-conditioning systems |
|
Sealant |
Flame retardant phosphorus-free polyurethane adhesive |

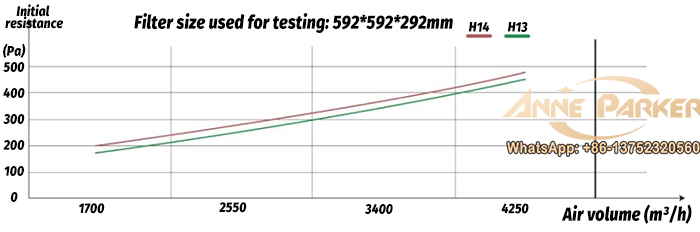

Initial resistance and wind speed
V bank filter Dimensions
|
Nominal size W*H*D (mm) |
Actual size W*H*D (mm) |
Filter block (V) |
Air volume (m³/h) |
Wind speed (m/s) |
Rated initial resistance (Pa) |
|
|
H13 |
H14 |
|||||
|
24*24*12 |
610*610*292 |
5 baffles 10 sides (5V) |
4000 |
3.0 |
310 |
340 |
|
24*24*12 |
610*610*292 |
5 baffles 10 sides (5V) |
3400 |
2.5 |
260 |
280 |
|
24*24*12 |
610*610*292 |
4 baffles 8 sides (4V) |
3400 |
2.5 |
330 |
360 |
|
24*24*12 |
610*305*292 |
2 baffles 4 sides (2V) |
1700 |
2.5 |
330 |
360 |

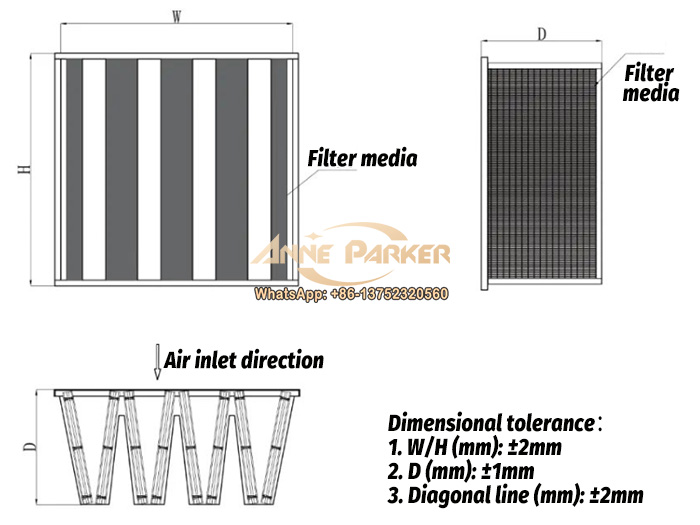

V bank air filter Drawing
