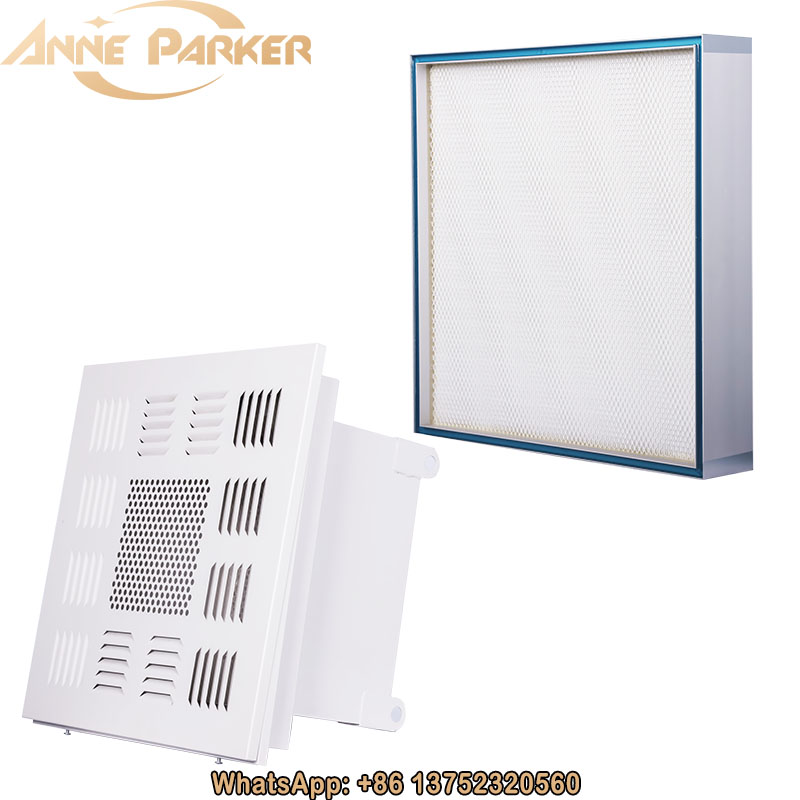

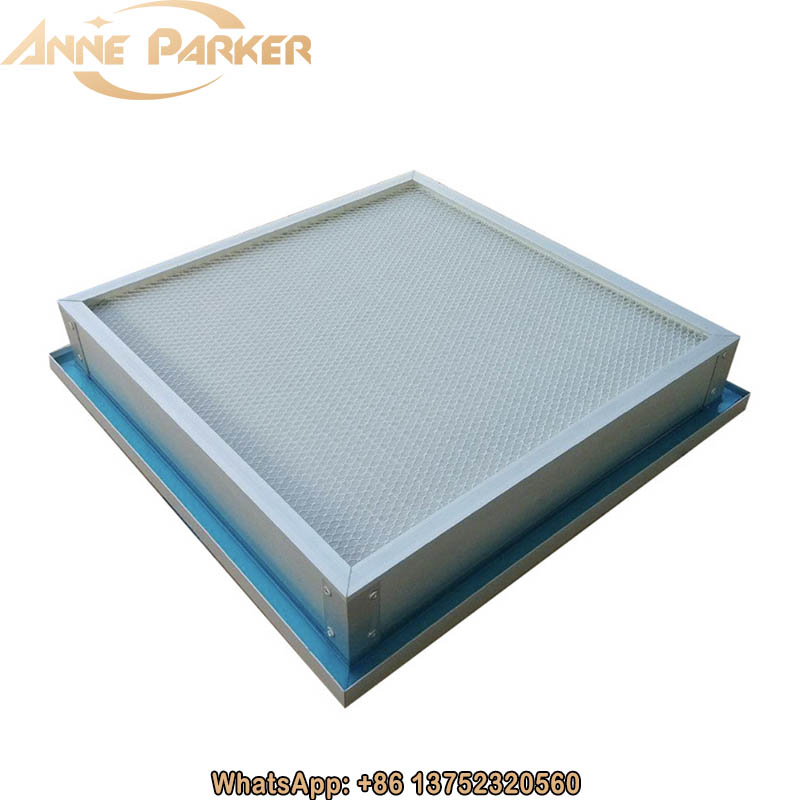

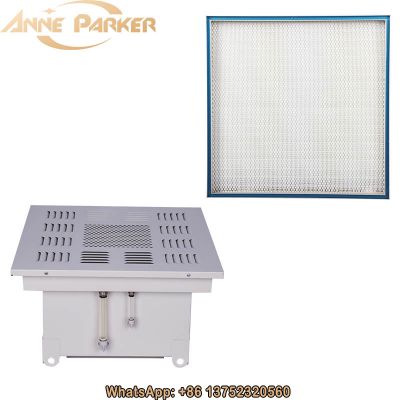

Gel Seal Mini Pleat H14 HEPA ULPA Air Filtration Filter

Geal Seal Mini Pleat H14 HEPA ULPA Air Filtration Filter

Features

Gel Seal design ensures perfect seal

International brand gel seal design, excellent chemical stability, corrosion resistance, mouldproof, not easy to breed bacteria and moderate hardness even repeatedly disassembling, Gel seal HEPA filter after a period of standing can still maintain good sealing.

Strict material selection, very low chemical volatilization

All parts of mini pleat ULPA filters are very low chemical volatile material, meet the requirements of conventional cleanroom and air filtration equipment.

Good sealing HEPA filter Compact structure, easy to install and replace

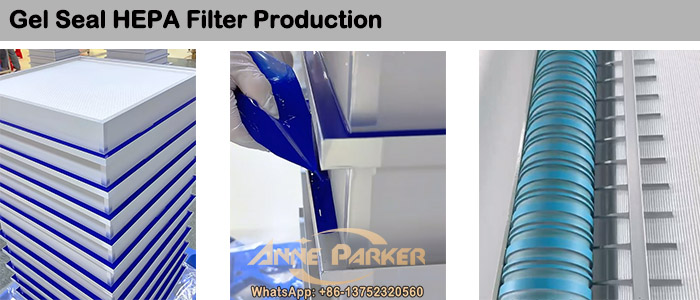

The frame of H14 HEPA filter is made of flanged aluminum, and the waterproof flame glass filter element separated by hot melt glue is sealed with imported phosphorus-free polyurethane glue, and the protective mesh, jelly glue and other components are supplemented. Air filtration filters with the characteristics of compact structure, small and light, easy to install and replace.

Mini pleat structure, low resistance, good energy saving

The special design of hot melt adhesive is used to separate the HEPA panel filter paper to ensure that the filter paper has the same and reasonable spacing to make full use of the filter paper to achieve uniform wind speed and low resistance.

Gel Seal HEPA Filter Test efficiency according to EN1822 to ensure efficiency

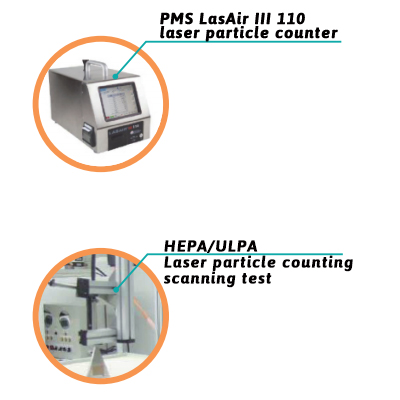

According to EN1822 standard, PMS laser particle counter and PSL test particles are used to test the efficiency of the filter using MPPS (the most easily penetrated particle size) method to ensure that the HEPA air filter efficiency meets the requirements. Provide online test reports.

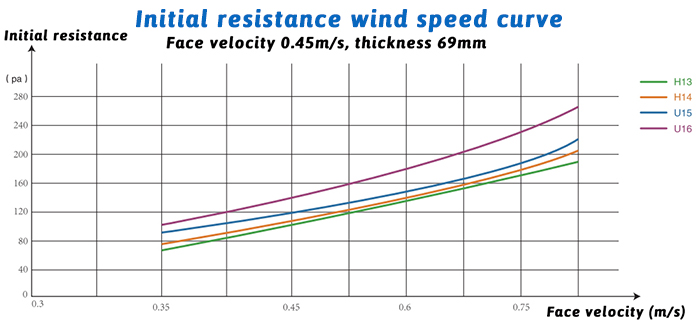

Gel Seal HEPA Filter Initial resistance wind speed curve

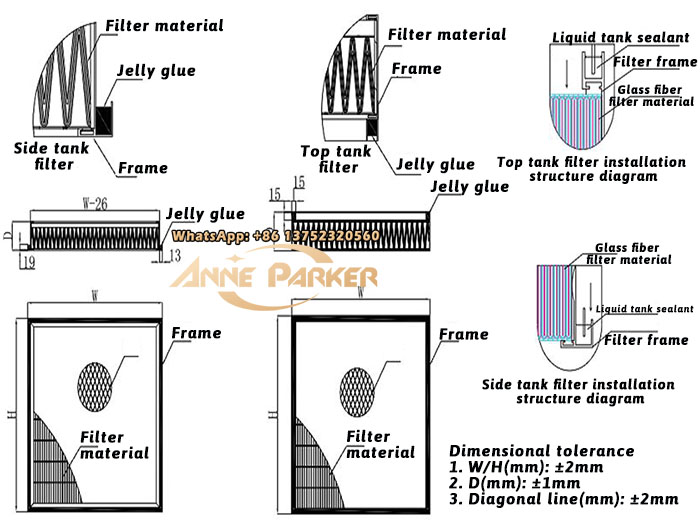

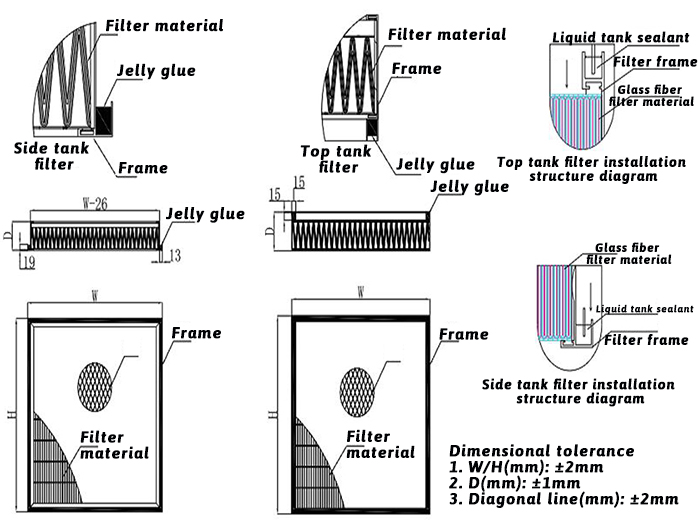

Gel Seal HEPA Filter Product Drawing
