1. Product specifications:990*680*600
2. Centrifugal fan: 355
3. The noise of a single motor is ≤65dB and the vibration amplitude of the whole machine is <5um (X, y, 2 three-way).
4. High efficiency: reverse flange gel seal HEPA filter without partition, filtration efficiency (H14)
5. Equipped with Duwei differential pressure gauge (0-500Pa)
Illustrate:
1. Laminar flow hood Box material: sus304#/1.2mm sanded stainless steel plate bending forming:
2. Product specifications:990*680*600
3. Centrifugal fan: 355
4. The noise of a single motor is ≤65dB and the vibration amplitude of the whole machine is <5um (X, y, 2 three-way).
5. High efficiency: reverse flange gel sealed HEPAfilter without partition, filtration efficiency (H14)
6. Equipped with Duwei differential pressure gauge (0-500Pa)

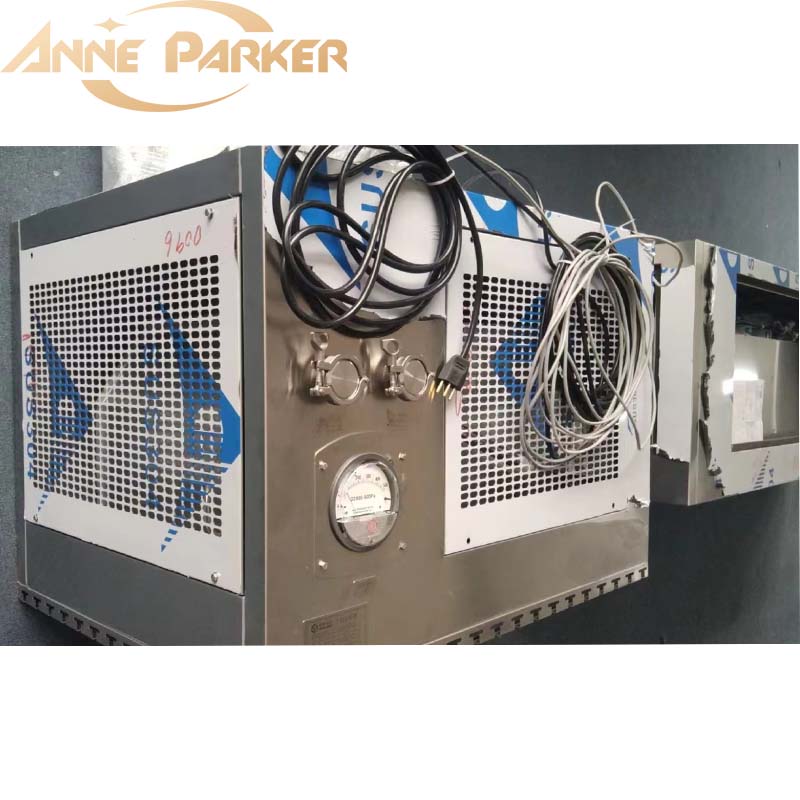

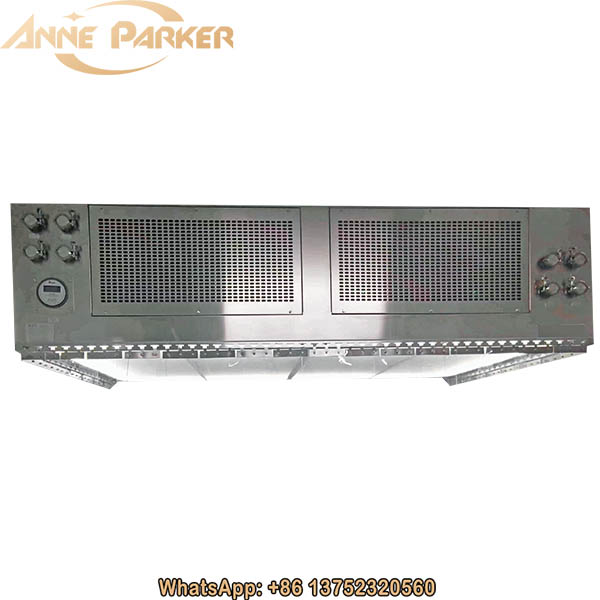

Cleanroom equipment booth laminar flow hood details:
|
1 |
Fan |
355 |
1 set |
XM 220V |
|
2 |
LED Light |
T5 |
4 pcs |
JLG |
|
3 |
Differential Pressure gauge |
0-500Pa |
1 set |
Duwei |
|

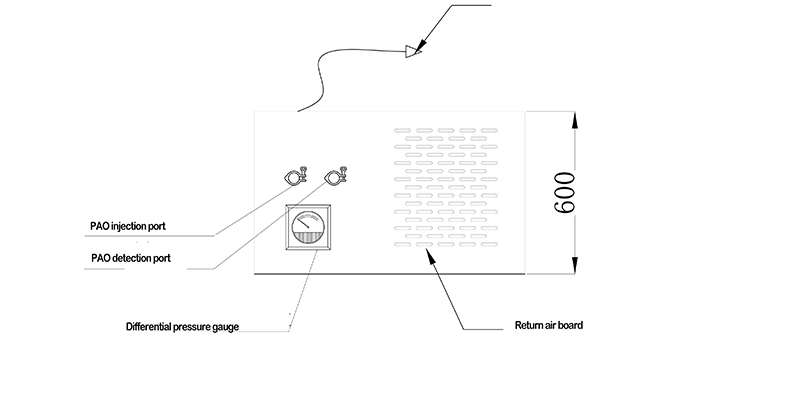

4 |
PAO Injection port |
6 points clamp |
1 set |
SUS 304 |
|
5 |
PAO Detection port |
6 points clamp |
1 set |
SUS 304 |
|
6 |
HEPA Filter |
H14 |
1 pcs |
Gel seal aluminum frame without |
|
7 |
Primary Filter |
Nylon mesh |
2 pcs |
Aluminum frame |
|
8 |
Frequency Converter |
220v |
1 set |
JLG |
|
9 |
Control Panel |
3000 |
1 set |
24V |
Before ordering we need to confirm:
1. After the laminar flow hood is installed, is it easy for personnel to access the control panel.

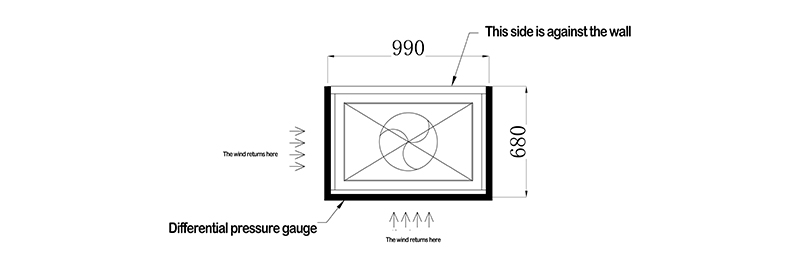

2. The return air surface on the side of the laminar flow hood cannot interfere with the wall, etc.;
3. When the laminar flow hood is installed on the top, it cannot interfere with the lamps, air vents, etc. on the top;

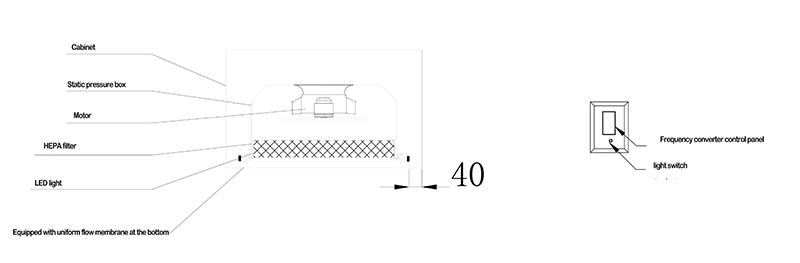

4. The air outlet frame of the laminar flow hood is designed to be 40mm.
Does it meet the on-site requirements?
5. What is the size of the laminar flow hood box? Is there enough space to enter the site?
(Corridor, doorway, corner, etc. dimensions)
7. The PAO detection hole is equipped with a stainless steel quick connector;
8. The air outlet surface is equipped with a flow-equalizing film;
9. Cleanliness: IS05 (level 100);
10. Air intake method: side return air, Outlet wind speed: 0.36m/s≤ V≤0.54m/s;
11. Independent control of LED lighting
12. PAO test pass rate is 100% (in line with the new version of GMP testing standards)
13. Thetrol power converter control; good is about ok;
15. Frame size: 40mm (top installation);

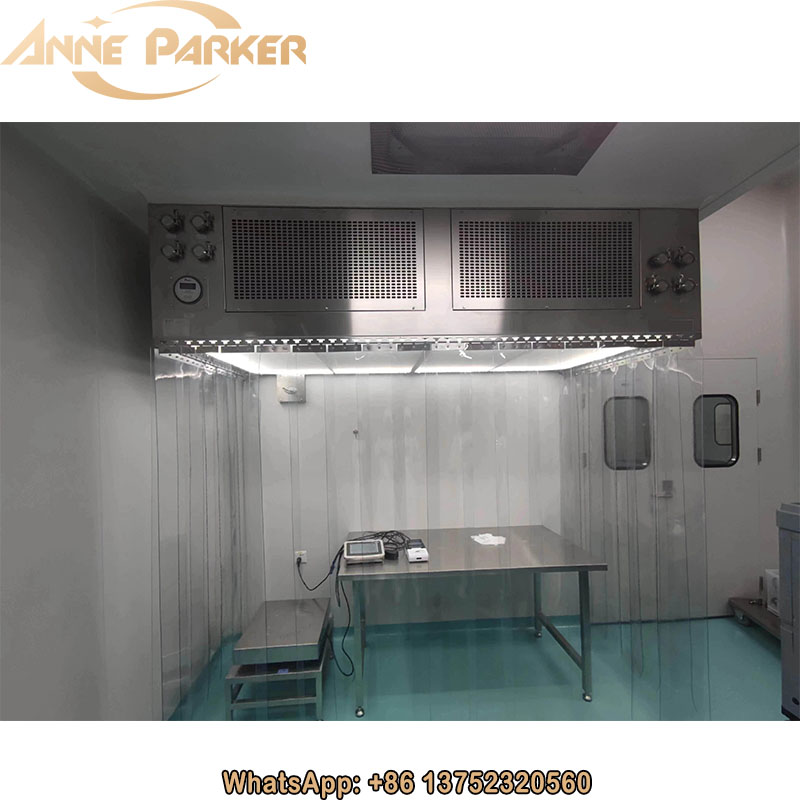

16. In the top view, PVC curtains are hung on the thick-edged wireframes,
17. Exporto Brazil requires a voltage of 50HZ/220; a European standard power
cord plug needs to be reserved.
