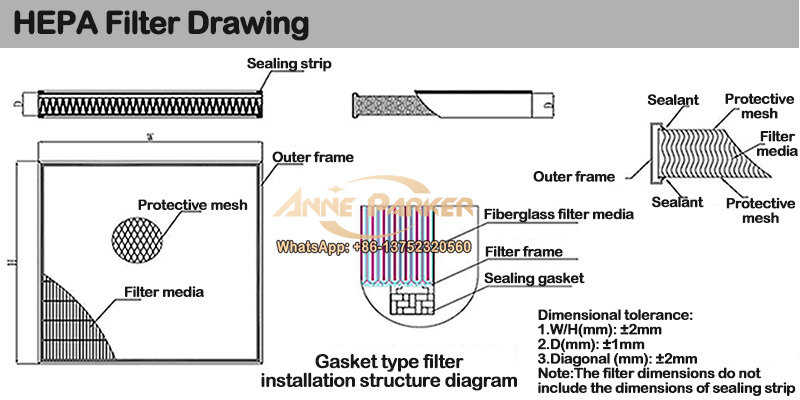

The frame of mini plate HEPA filter is made of aluminum extruded profiles. The waterproof and flame retardant glass fiber filter element separated by hot melt glue is sealed with imported phosphorus-free polyurethane glue, and then supplemented with protective mesh, sealing gasket and other components.

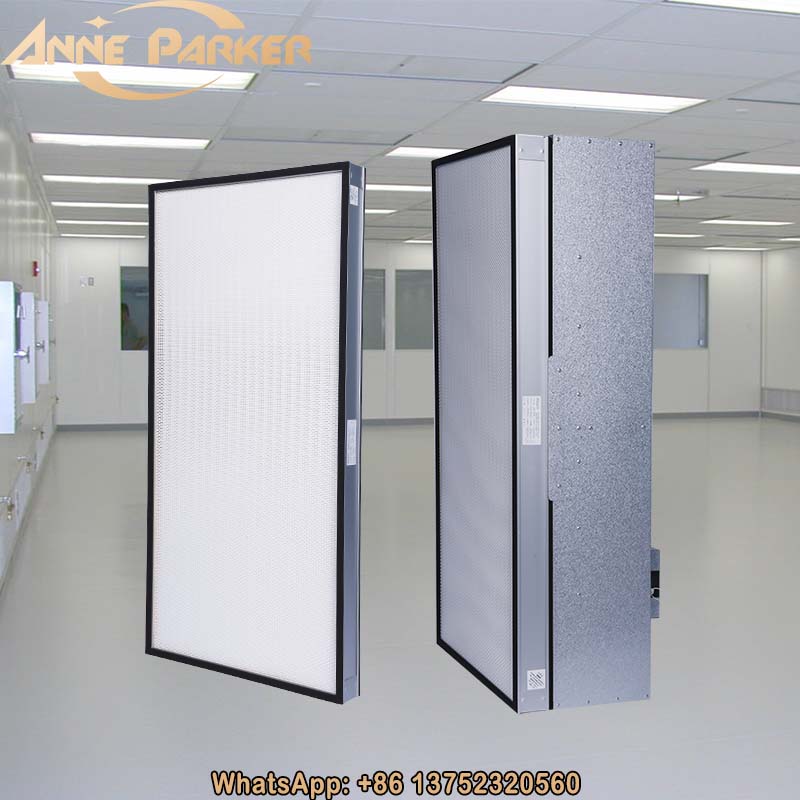

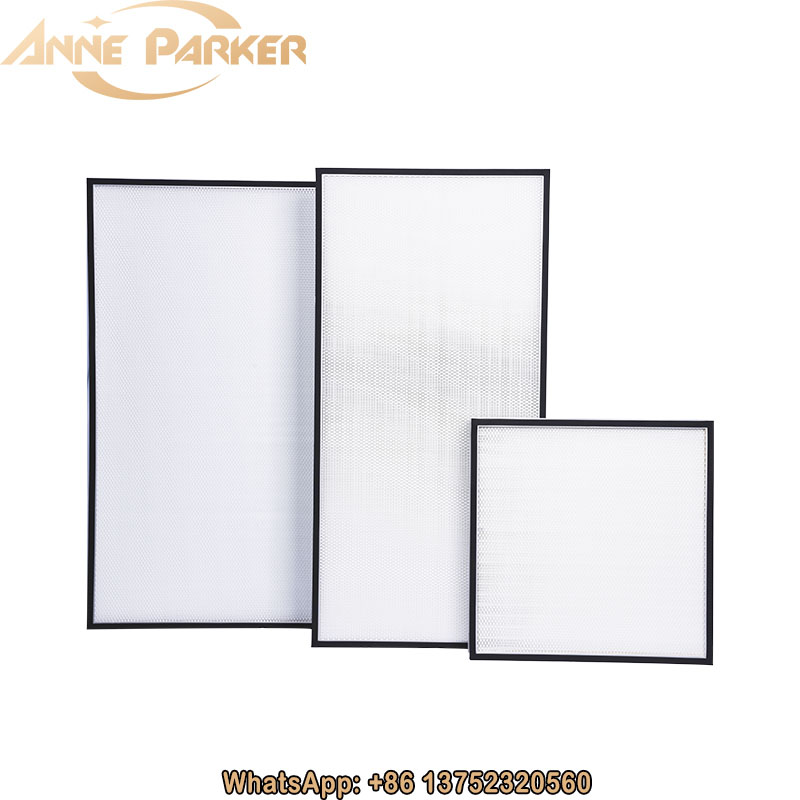

PTFE Good Sealing Mini Pleat H14 HEPA Panel Air Filter
1. Advantages & Benefits
I. Compact structure, easy to install and replace
The frame of mini plate HEPA filter is made of aluminum extruded profiles. The waterproof and flame retardant glass fiber filter element separated by hot melt glue is sealed with imported phosphorus-free polyurethane glue, and then supplemented with protective mesh, sealing gasket and other components. HEPA air filter with the characteristics of compact structure, small and light, easy to install and replace.
II. 100% leak test to ensure no leaks
The industry's advanced environmental protection water-based aerosol leak detection platform. Test without secondary pollution, to ensure that each HEPA panel filter does not leak.
III. Mini pleat structure, low resistance, good energy saving
The special design of hot melt adhesive is used to separate the high efficiency filter paper to ensure that the good sealing HEPA filter paper has the same and reasonable spacing to make full use of the filter paper to achieve uniform wind speed and low resistance.
IV. Strict material selection, very low chemical volatilization
All components of industrial mini pleated air filters are made of extremely low chemical volatile materials to meet the requirements of conventional clean rooms for air filtration equipment.
V. Non-continuous spray technology, low resistance. "V" shaped channel, low resistance, long life.
VI. Automatic sorting, can flexibly adjust the height and width of the filter pleat according to the demand.
2. Laminar HEPA filter Specifcations
|
Frame |
Aluminum profile |
|
Filter material |
High-quality ultra-fine moisture-proof glass fiber filter paper |
|
Filter material separator |
Hot melt adhesive |
|
Filtration efficiency |
H14/U15/U16/U17 (EN1822) |
|
Fire rating |
UL900 in certification |
|
Continuous operating temperature |
≤70° C |
|
Recommended final resistance |
500Pa |
|
Main application |
All kinds of industrial clean room |
|
Sealant |
Polyurethane |
|
Safety guard |
Double-sided steel mesh spray (white) |
|
Average wind speed |
0.45m/s |
3. HEPA Filter For Sale Performance parameter
|
Frame type |
Thickness (mm) |
Rated resistance (Pa) |
|||
|
H13 |
H14 |
U15 |
U16 |
||
|
Flat frame |
50 |
140 |
145 |
165 |
185 |
|
69 |
110 |
115 |
130 |
145 |
|
|
80 |
90 |
95 |
110 |
125 |
|
|
93 |
75 |
80 |
95 |
110 |
|
|
117 |
65 |
70 |
75 |
90 |
|
|
Knife edge |
88 |
107 |
112 |
122 |
137 |
|
110 |
85 |
90 |
100 |
115 |
|

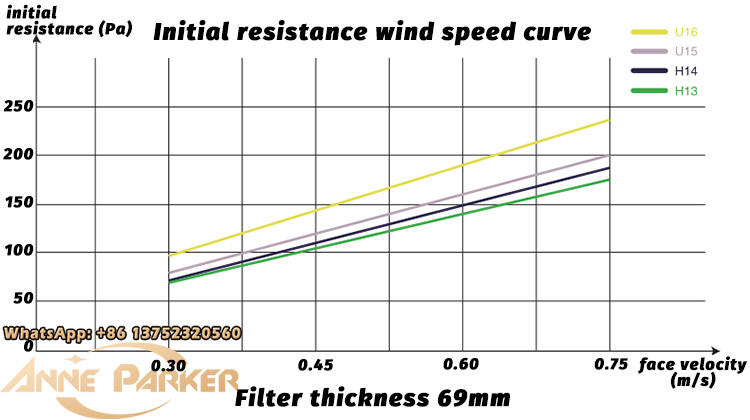

4. HEPA air filter Initial resistance wind speed curve
