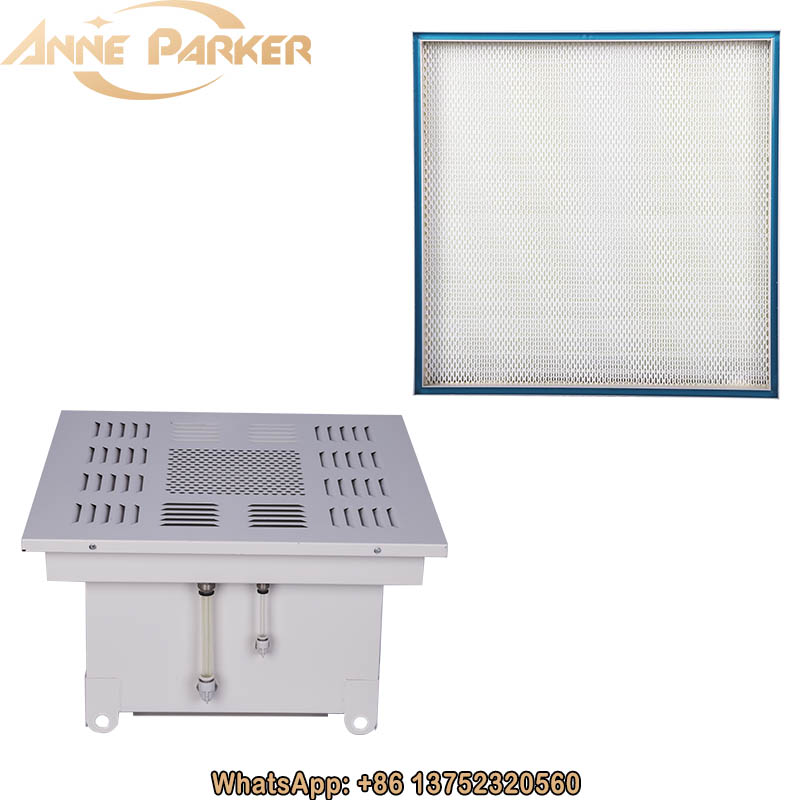

Cleanroom H14 Top Gel Seal HEPA Filter Manufacturer

Cleanroom H14 Top Gel Seal HEPA Filter Manufacturer

Gel seal HEPA filter is the ideal terminal filter for industrial clean room and biological clean room, and it is also the ideal matching filter for other purification equipment.

Gel seal is better than the mechanical pressing device sealing method commonly used. Gel seal HEPA filter is easy to install, sealing is very reliable, is widely used in the world HEPA filter sealing method.

Advantages: high sealing, good leak repair.

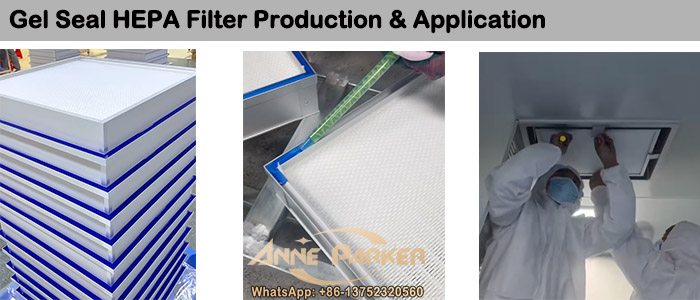

Application: gel seal HEPA filter is widely used in the installation of clean rooms with high requirements, large-area vertical laminar flow, hundred-stage laminar flow hoods and cleanroom HEPA filters.

The HEPA filter is directly equipped with a 20mm deep gel seal in the aluminum profile outer frame, and the sealant is injected into the gel seal, and then the tool holder structure is directly inserted into the gel seal sealant to ensure a high degree of tightness. There is no partition, the use of ultra-fine glass fiber filter media, and the inlet and outlet air surface are protected, which is mainly used for efficient filtration or terminal filtration of various vertical air supply clean workshops. Gel seal HEPA filter products because there is no partition, so light weight, small volume, reliable sealing.

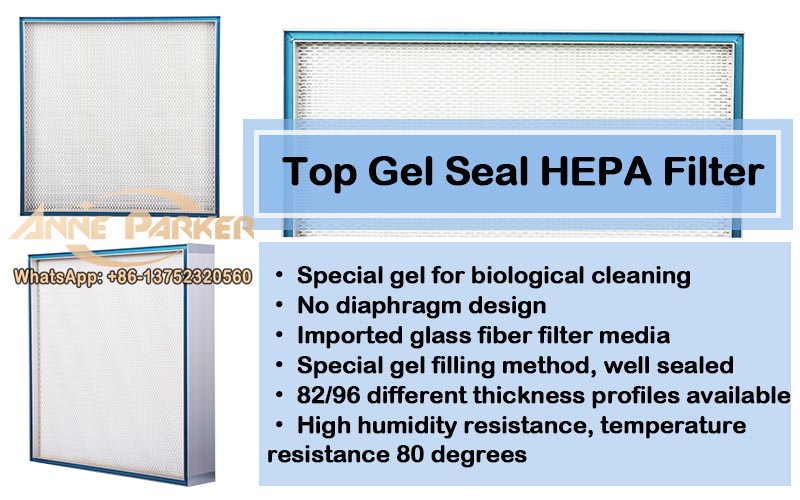

Gel seal HEPA filter features:

(1) Mainly used to filter air suspended particles above 0.3um, as the end filtration of various filtration systems.

(2) All around the filter are sealed with special sealant to ensure the tightness of the entire filter.

(3) Install a spray protective net on the inlet and outlet air surfaces of the filter to protect the filter paper from being damaged.

(4) The filter media is made of ultrafine glass fiber filter paper, separated by hot melt adhesive.

(5) Because the air outlet of the filter has a flange, the size of the air inlet and air outlet are inconsistent, and the customer needs to provide the size of the air inlet and air outlet when ordering.

(6) All filters are strictly tested before delivery, and the pass rate is 100%.

Sealant: Special sealant for gel seal

Efficiency: H13, H14.

H13(EN18822)：≥99.95％@MPPS (≥99.99％@0.3μm)

H14(EN18822)：≥99.995％@MPPS (≥99.999％@0.3μm)

Gel seal HEPA filter, size specifications provided by customers, accept non-standard custom!

Technical parameters
