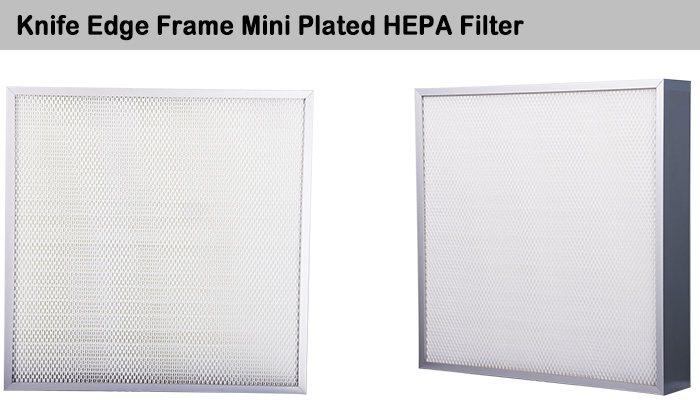

Knife Edge Frame Mini Plated HEPA Filter High Performance

Knife Edge Frame Mini Plated HEPA Filter High Performance

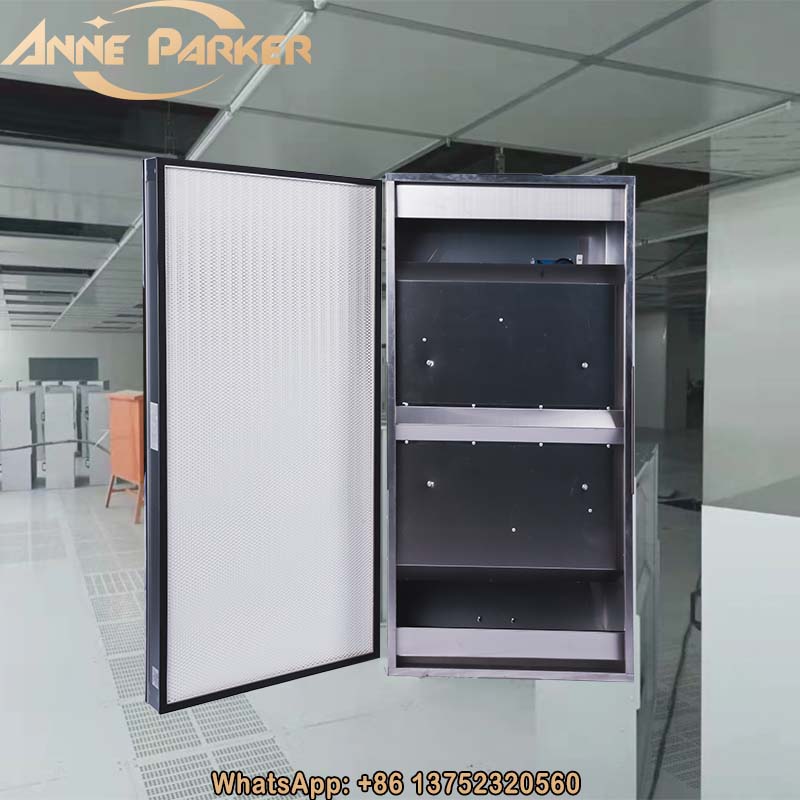

The aluminum profile frame of this knife-edge mini-plate filter is directly equipped with a 20mm deep side measuring curtain type tool holder structure, which can be directly inserted into the gel seal device to ensure a high degree of sealing, easy installation, good sealing performance and other characteristics.

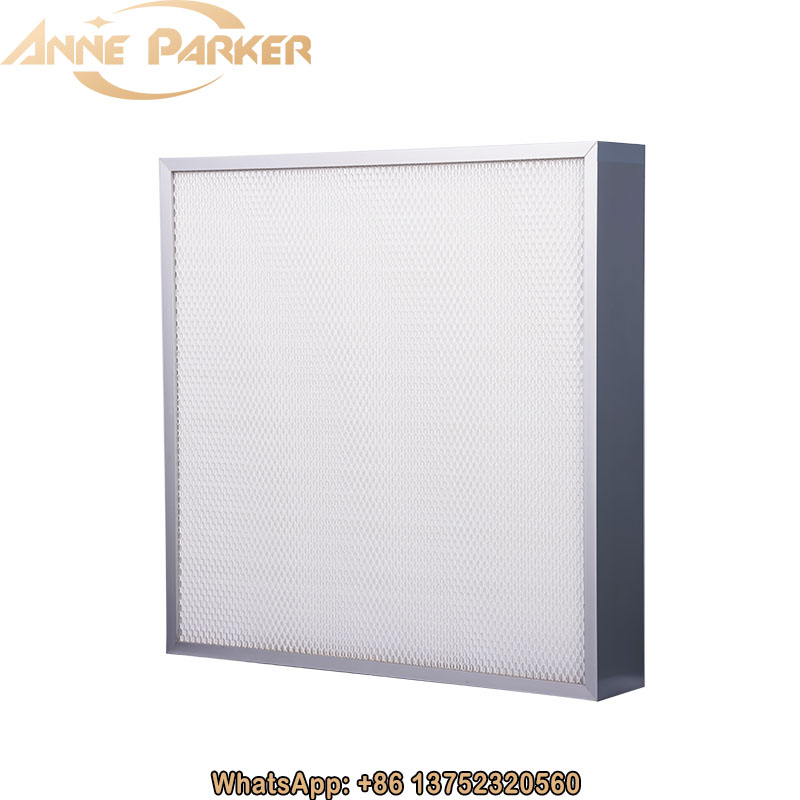

Knife-edge frame filter, high performance filter knife-edge and knife-edge HEPA filter are the same, aluminum profile outer frame is directly equipped with 40mm deep side measurement curtain type knife-edge structure, can be directly inserted into the gel sealing device to ensure high sealing, with easy installation, good sealing performance, high efficiency, low resistance, large dust content, wind speed uniformity and other characteristics.

Knife-edge pleated filter Product features:

1. The outlet surface has a knife edge of a certain length.

2. Fiberglass filter media, hot melt adhesive separation.

3. The fold spacing is equal to ensure the best airflow and achieve high dust capacity.

4. Special sealing agent to ensure tightness.

5. Knife-edge mini-plate filters import and export are equipped with spray guardrail to reduce filter media damage.

Application: Pharmaceutical factories, biological factories, food processing and other places that need to strictly control air pollution sources and a variety of vertical air supply clean workshop terminal filtration.

Knife-edge pleated filter can be widely used in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, beverage and food, PCB printing and other industries clean air conditioning end supply. Knife-edge HEPA filter is used in hospitals, electronics factories, semiconductor factories, clean rooms, laminar clean bench and other occasions requiring high cleanliness.

Knife-edge frame filter Material and performance:

1. Frame material: aluminum alloy profile

2. Filter media: ultrafine glass fiber

4. Divider: EVA hot melt glue

5. Sealant: EVA, polyamine glue, neoprene

6. Efficiency: ≥99.99%@0.3μm (DEHS counting method)

7. Use a maximum temperature of 80℃

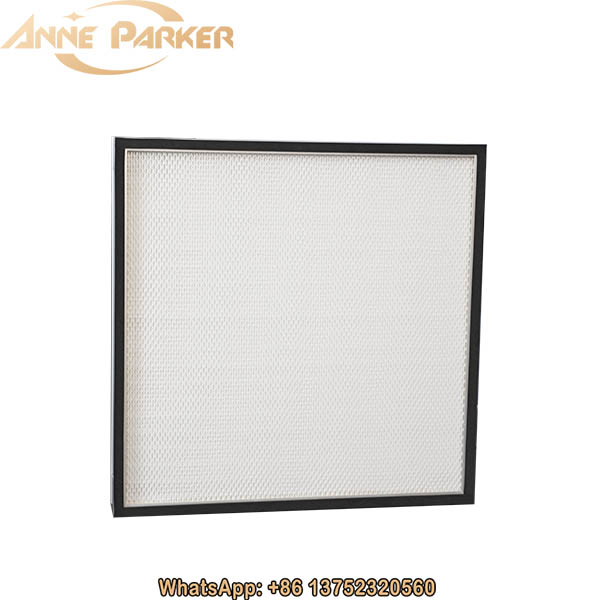

Knife-edge mini plate HEPA filter Features:

1. Filter media: H13-H14 domestic high humidity glass fiber filter paper or H13-H14 American HV glass fiber filter paper.

2. Frame body sealant: polyurethane glue, hot melt glue.

3. Frame material: aluminum profile frame.

4. The separator is hot melt adhesive.

5. Optional thickness of aluminum profile: 90mm, 110mm, 120mm

6. Filtration efficiency: H13: 99.97-99.99%@0.3μm H14: 99.995-99.999%@0.3μm.

7. The maximum temperature is 70℃, the maximum humidity is 80℃.

Knife-edge HEPA filter Technical parameters

 Knife-edge HEPA filter Design features

1. Knife-edge pleated filter is mainly used for filtering airborne particles above 0.3μm, as the end filtration of various filtration systems.

2. The filter media is made of ultrafine glass fiber filter media, separated by hot melt adhesive.

3. This design reduces the operating cost, and the mini-pleat thermoplastic spacer can ensure the same fold spacing, ensure the air flow through, achieve high dust capacity, and make full use of the filter media of the entire depth of the knife-edge frame filter.

4. All around the high performance filter knife-edge are sealed with special sealant to ensure the tightness of the entire knife-edge HEPA filter.

5. Install a spray protective net on the inlet and outlet air surfaces of the knife-edge pleated filter to protect the filter media from being damaged.

6. The air outlet side of the knife-edge pleated filter has a knife edge of a certain length.

7. Each knife-edge mini-plate filter is strictly tested.

8. Filtration efficiency level: H13, H14 (EN1822).
