Clean Room Side Gel Seal HEPA Filter Specification Supplier

Clean Room Side Gel Seal HEPA Filter Specification Supplier

Gel seal HEPA filters are widely used in high-grade clean environments, which can ensure the air quality of clean workshops.

Gel seal HEPA filter Sealing principle

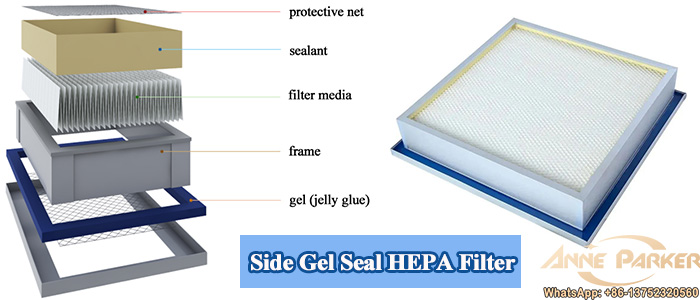

The difference between gel seal HEPA filter and ordinary cleanroom HEPA filter is mainly reflected in the installation sealing method, from the name, it can be seen that the former mainly uses gel seal type seal, in simple terms, the use of knife edge type insert gel seal and jelly glue sealing edge, so as to avoid leakage at the air supply gap.

After the sealing installation is completed, DOP leak detection is usually carried out to ensure that the clean room HEPA filter does not leak.

Gel seal HEPA filter Application

Because this gel seal HEPA filter has good sealing, it is mainly used in electronics, pharmaceutical industry, high efficiency air supply, laminar flow equipment and other clean places with high requirements.

Gel seal HEPA filter Installation notice

In the installation of gel seal HEPA filter, not only like the ordinary HEPA filter, pay attention to check the tightness of the box, frame, filter, etc., in the installation process also need to pay attention to the installation in accordance with the specification, if taken lightly, there will still be a risk of leakage.

Therefore, the filter installer must undergo professional training in order to engage in this critical installation operation, there are also provisions in the number of people, must be two people to cooperate with the installation, if it is a large size of the gel seal HEPA filter, but also need more than two people to cooperate with the installation.

Taking into account the clean room HEPA filter filtration efficiency is higher, in the installation process, the installer should wear special gloves, avoid polluting the filter surface, lift the filter over the head, level and slowly push up along the limiting device, so as to properly cut into the gel seal position, to avoid the filter up, down, left, right or corner installation is not in place.

If this kind of installation is not in place, do not worry, you need to remove the gel seal HEPA filter, repair the gel seal part, and then re-install, and cannot be forced to translate or rotate the filter in the horizontal direction after cutting the tool rest, adjust the position, because the gel seal gap inserted through the knife edge can seep water if it is not repaired. Naturally, there is a risk of leakage.

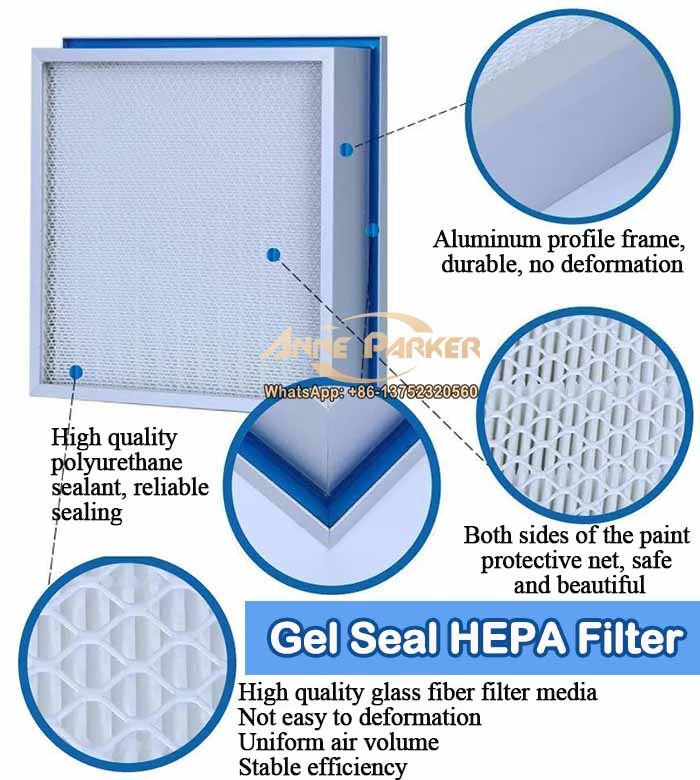

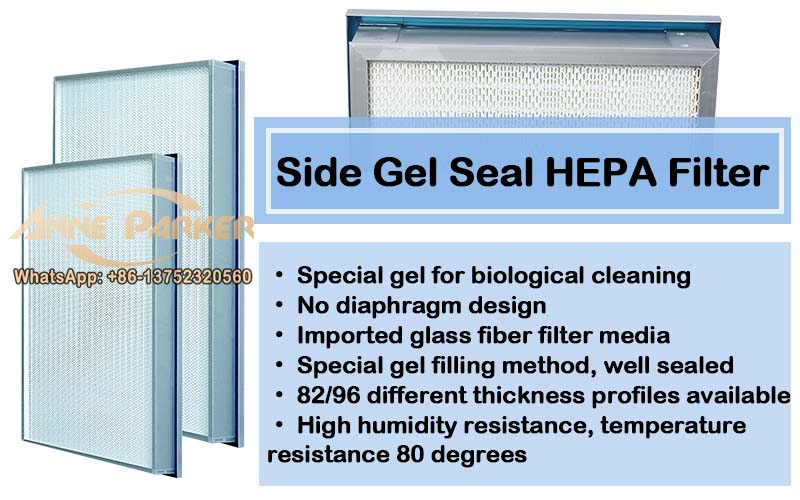

Gel seal HEPA filter has the advantages of easy installation, reliable sealing, stable filtration effect, etc. The gel seal type sealant used has good stability at room temperature, and can meet the occasions with high sealing requirements.

As professional clean room HEPA filter supplier, different clean room HEPA filter specifications can be customized.

Technical parameters
