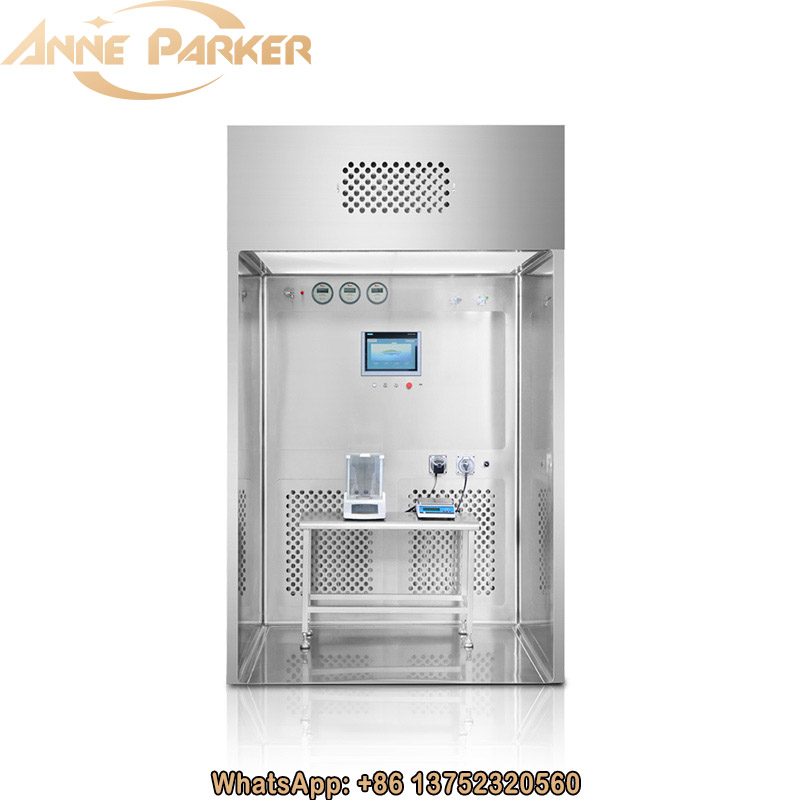

Reverse Laminar Air Flow Dispensing Booth Filters Weighing Room in Laboratory

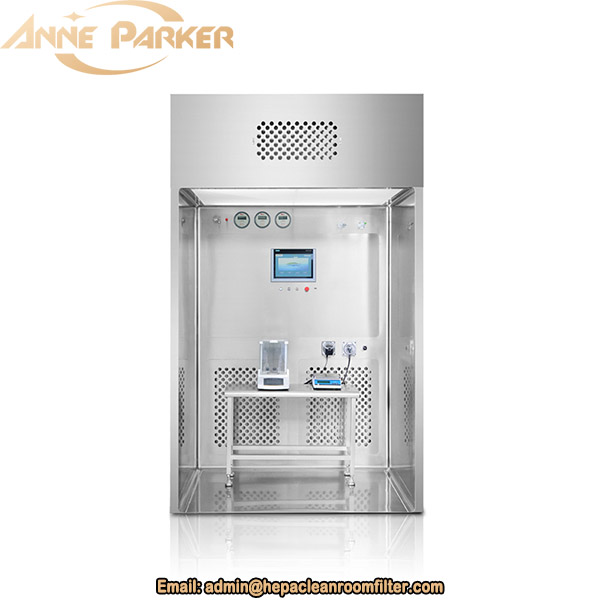

Reverse Laminar Air Flow Dispensing Booth Weighing Room in Laboratory

Product features:

1. Equipment features and uses

Anne Parker negative dispensing booth is a special local cleaning equipment for pharmaceutical, biological research and scientific experiments, which provides a vertical unidirectional air flow, part of the clean air circulation in the work area, and part of the discharge to the nearby area, so that the work area produces negative pressure, prevent cross-contamination, and ensure a high cleanliness environment in the work area.

2. Wind speed automatic frequency conversion system, so that the wind speed in the main working area is always in uniform and stable operation

3. Filter differential pressure display device, real-time monitoring of the effective operation of each filter.

4. Unique air duct design, effectively control the machine noise.

5. The unique flow design of the main work area, dust, reagent weighing, packaging in the equipment, can control dust, reagent spilt, rise, prevent dust, reagent inhalation harm to the human body, but also avoid dust, reagent cross pollution, protect the external environment and indoor personnel safety. The weighing operation area is protected by a 100-stage vertical laminar flow IS05 (NF, EN, ISO 14644-1).

6. Use environment and conditions:

Temperature 5 °C ~ 40 °C

Relative humidity not more than 85% (no condensation)

Atmospheric pressure 86kPa~106kPa

Power supply AC 380V, three-phase, 50Hz

Technical parameters:

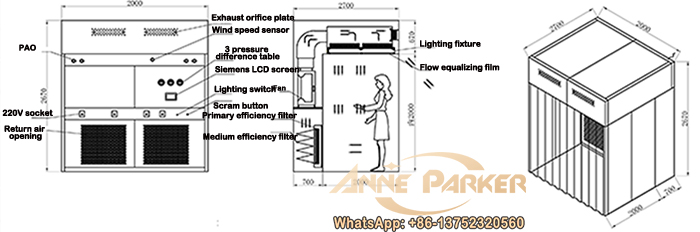

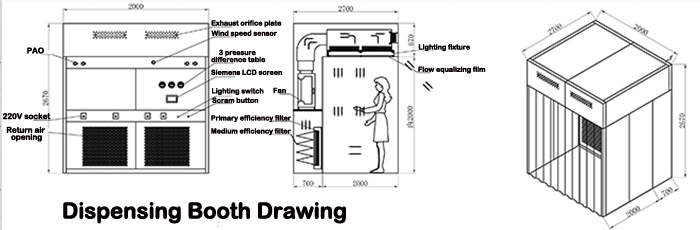

1. Inner size: 1900(L)*2000(W)*2000(H)

External dimensions: 2000(L)*2700(W)*2670(H)

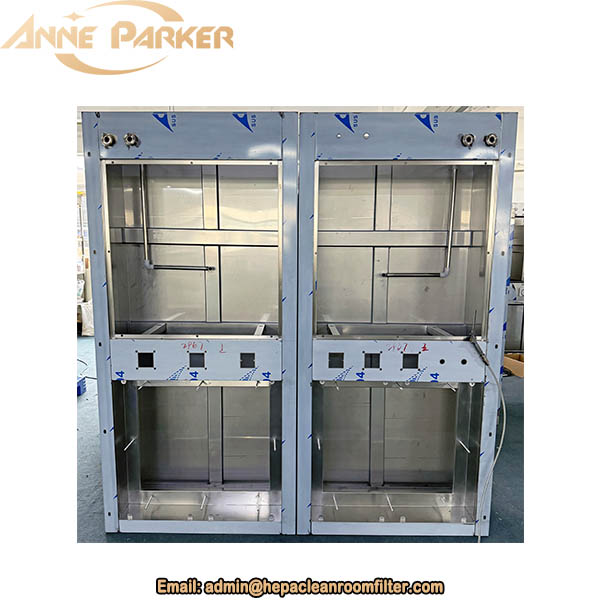

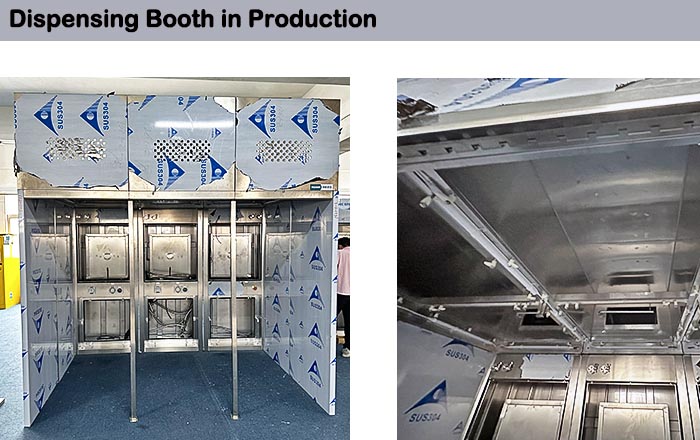

2. Main material: 2.0mm thick SUS304# sanding stainless steel plate bent and formed

3. Rated air volume (m³/h) 5000~7600

4. Outlet wind speed (m/s) 0.45±20%

5. Rated power (kw) 6 (including spare socket)

6. Noise (dB(A)) ≤75

7. Built-in LED lighting ≥300

8. Power supply 380V, 50Hz

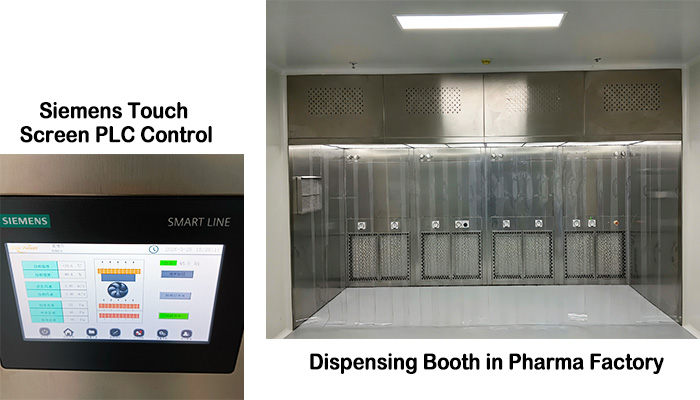

9. Control operation Siemens PLC control + LCD control panel

10. Control mode wind speed automatic frequency conversion system

11. Pre-filter efficiency G4, non-woven

12. Medium efficiency filter: efficiency F8, bag type

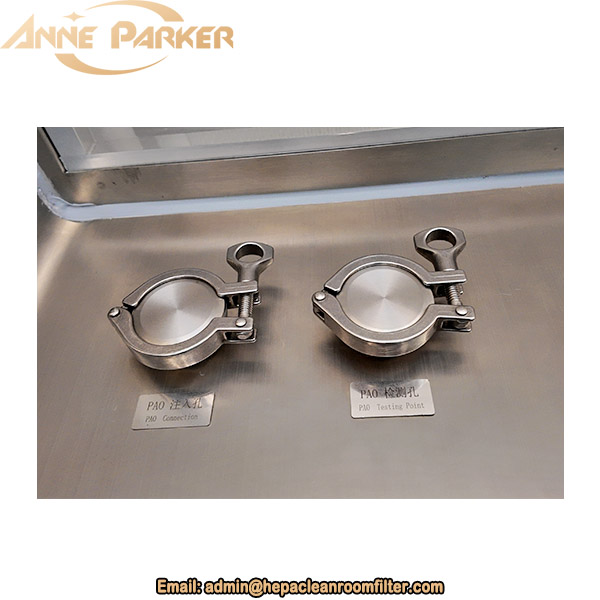

13. HEPA filter: efficiency H14, gel seal without partition (high efficiency with PAO detection port)

14. Pressure differential meter (American Dwyer brand) 3

15. The exhaust vents are equipped with HEPA filters

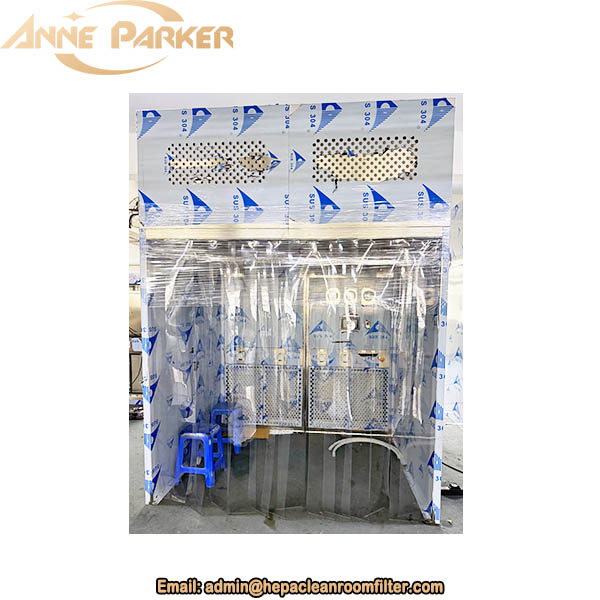

16. Front hanging detachable door curtain

17. Wind Speed sensor (KIMO or E+E)

18. Factory set 3 level password
