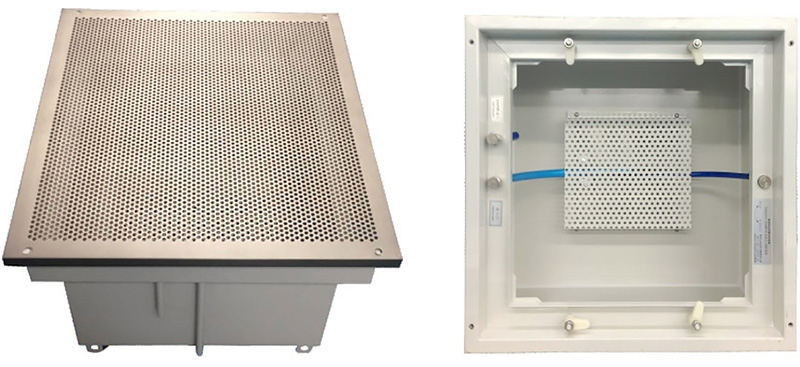

The terminal hepa filter housing box is an efficient air outlet with replaceable HEPA filter, which is widely used in hospital, biopharmaceutical, semiconductor, liquid crystal manufacturing, precision machinery, optics and other technical fields.

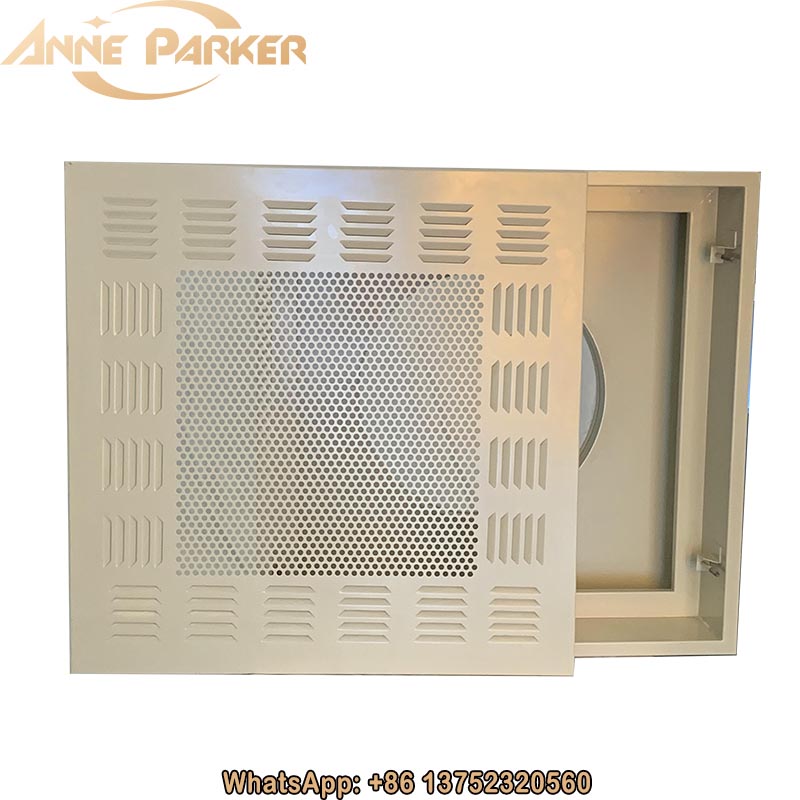

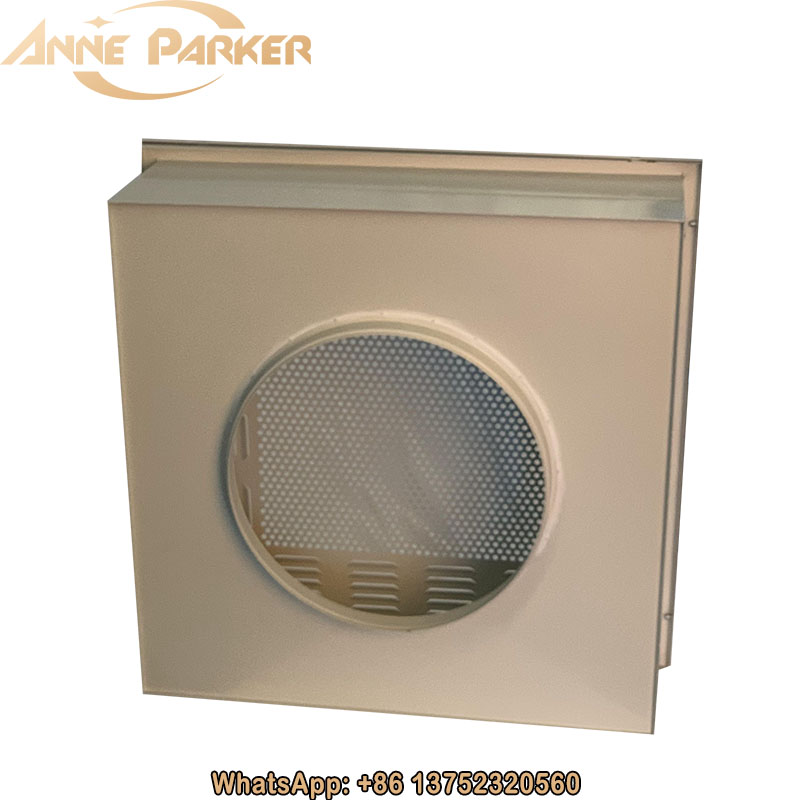

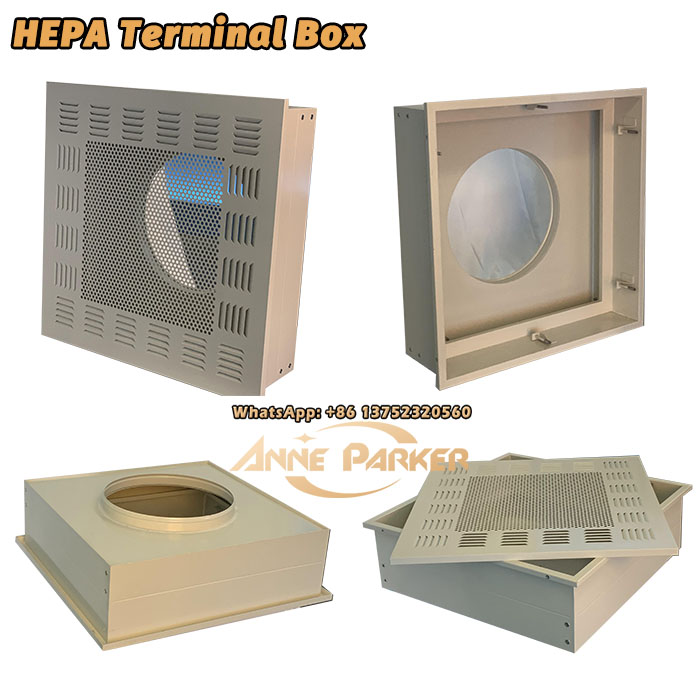

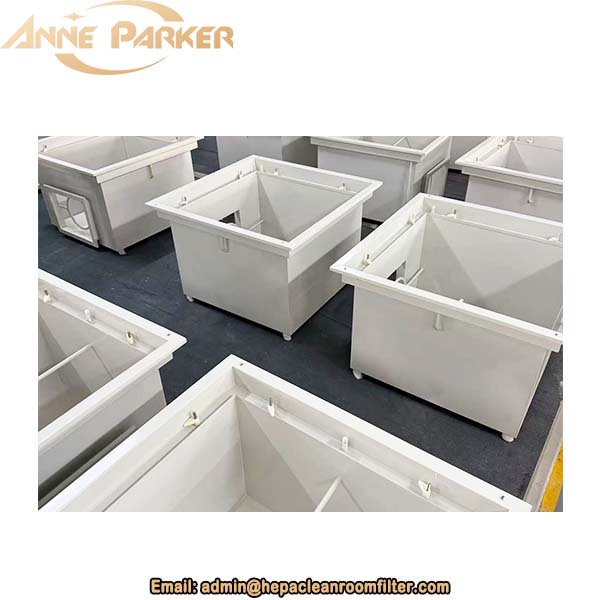

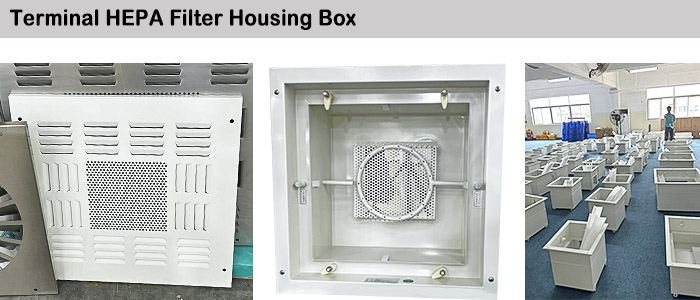

Terminal hepa filter housing box

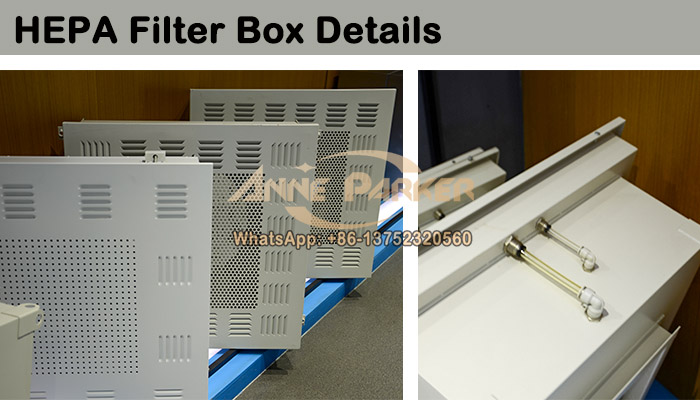

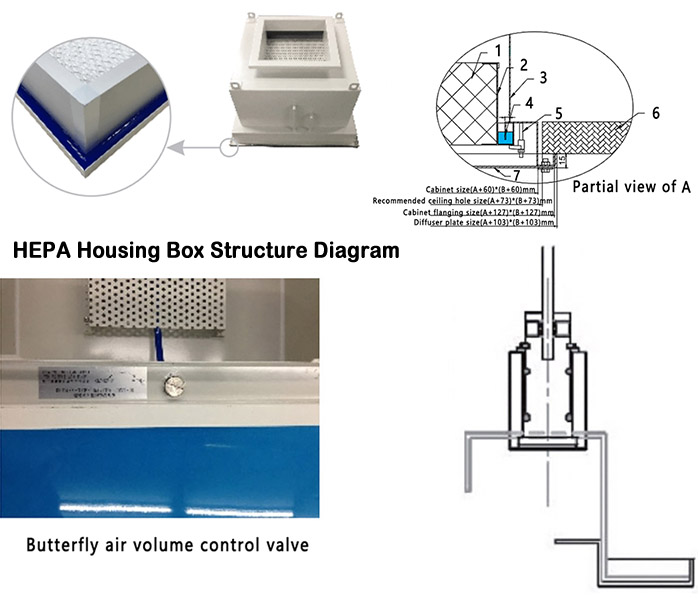

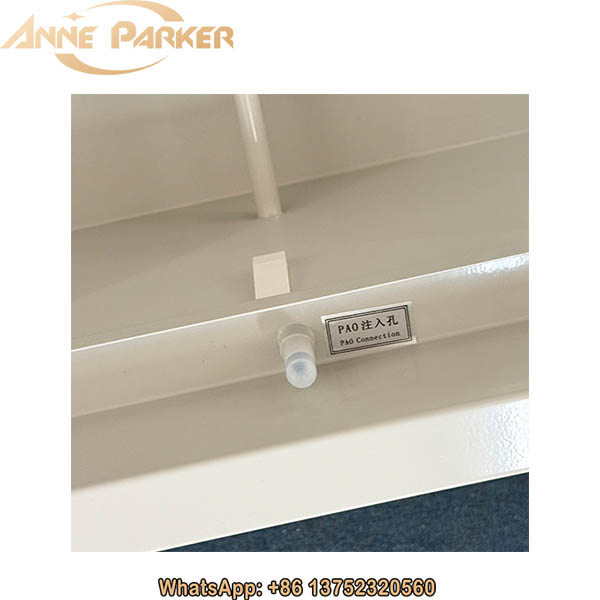

HEPA housing box Structure features

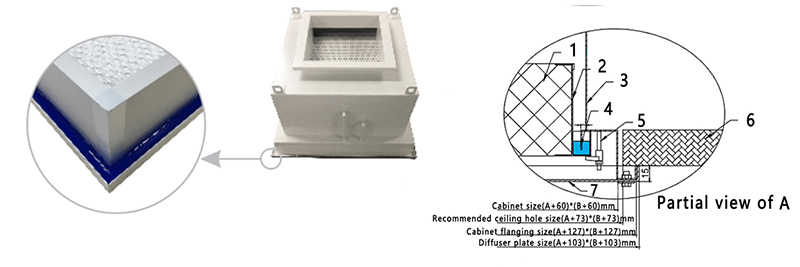

There is a sealant tank around the frame of the air filter used with the gel seal hepa filter terminal box efficient air outlet. In the installation process, the sealant groove is nested with the knife edge around the box to form an airtight seal. And in the process of replacing the filter, the sealant groove will not stick to the knife edge around the terminal hepa filter housing box.

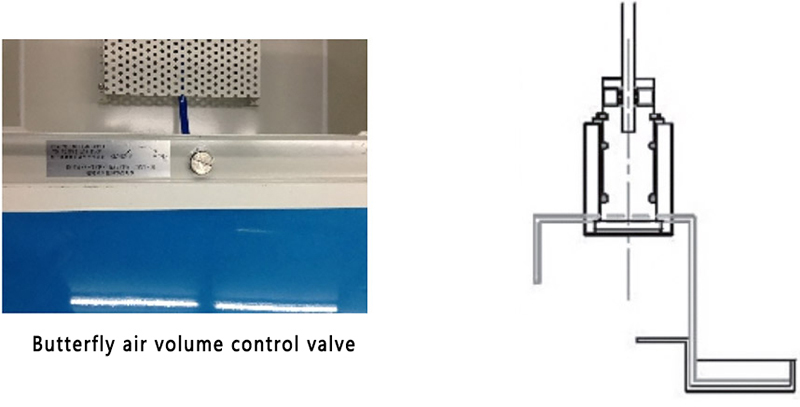

Disc valve adjusting device:
Located at the base of the HEPA box body of the butterfly valve adjusting device and disc air valve are connected by a metal section steel wire rod. This device can be turned directly from the bottom to control the butterfly valve, so that the amount of air entering the room becomes simple and convenient.

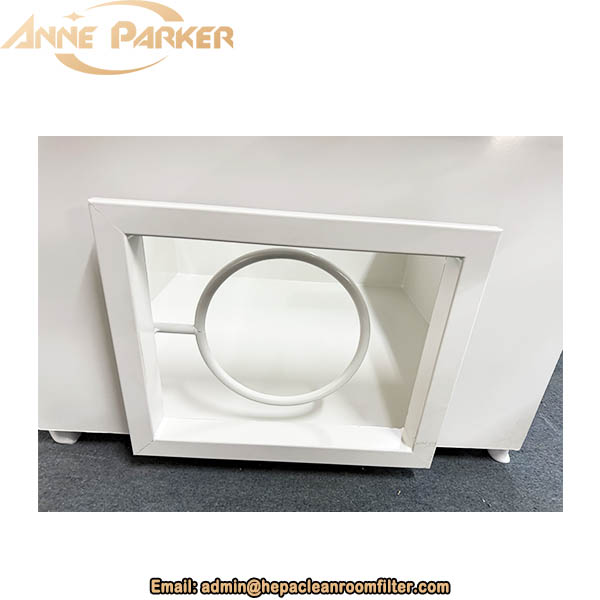

Dish air valve:
A dish-shaped air valve is arranged in the air intake at the top of the hepa housing box, and is controlled by a rotating valve regulating device on the side of the bottom of the hepa filter terminal box to adjust the air volume into the clean room.
Terminal hepa filter housing Technical parameters
|
Model |
Rated air flow (m³) |
Filter size (mm) |
Cabinet size (mm) |
Pipe size (mm) |
Hole size (mm) |
Diffuser plate size (mm) |
|
AN-GFXT 01 |
500 |
390*390*90 |
450*450*250 |
200*200*50 |
463*463*50 |
523*523*16 |
|
AN-GFXT 02 |
1000 |
524*524*90 |
584*584*250 |
320*200*50 |
597*597*50 |
657*657*16 |
|
AN-GFXT 03 |
1500 |
670*670*90 |
730*730*250 |
320*250*50 |
743*743*50 |
803*803*16 |
|
AN-GFXT 04 |
2000 |
965*660*90 |
1025*720*250 |
400*250*50 |
1035*730*50 |
1098*793*16 |
Note: The specifications listed in the table are for customer reference only, and non-standard sizes can be made according to customer requirements.
