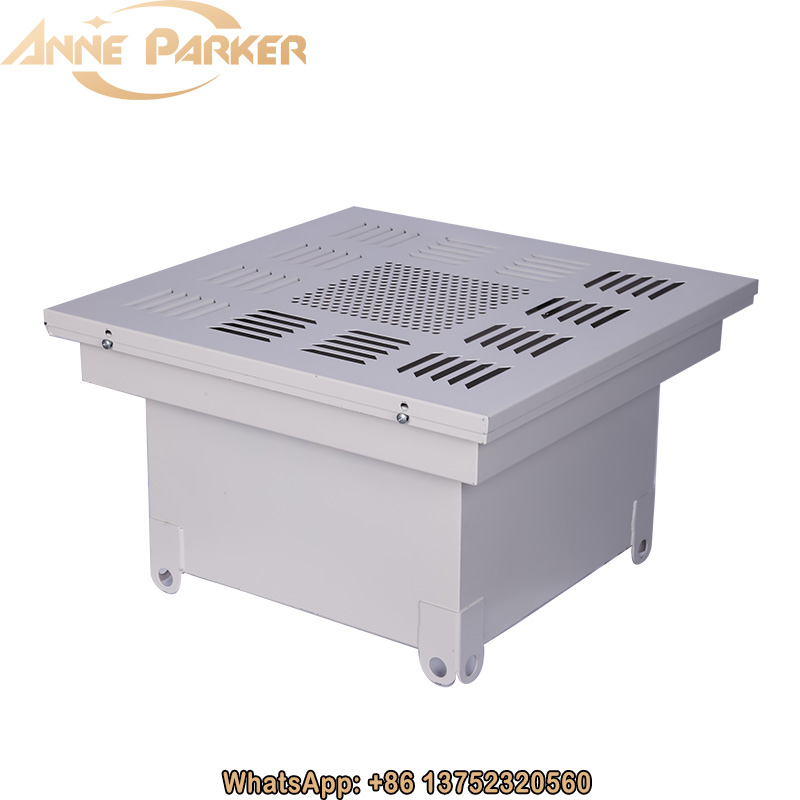

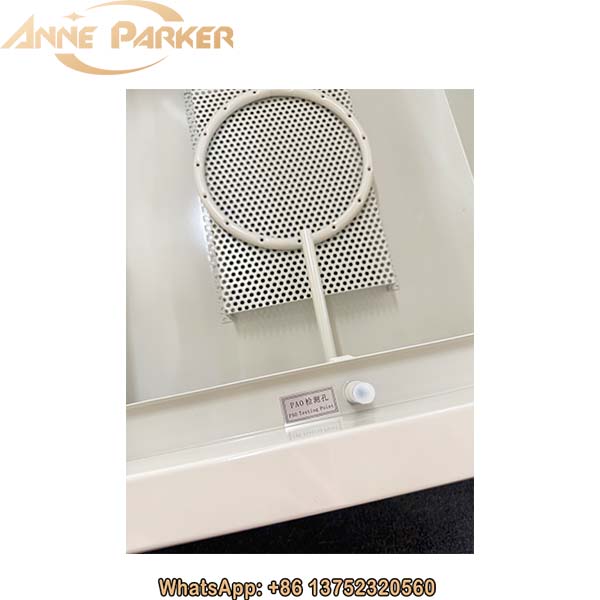

The Efficient Air Outlet HEPA filter housing box structure includes static pressure box, diffuser plate, air inlet flange, high-efficiency air filter, pressing device and bolts.

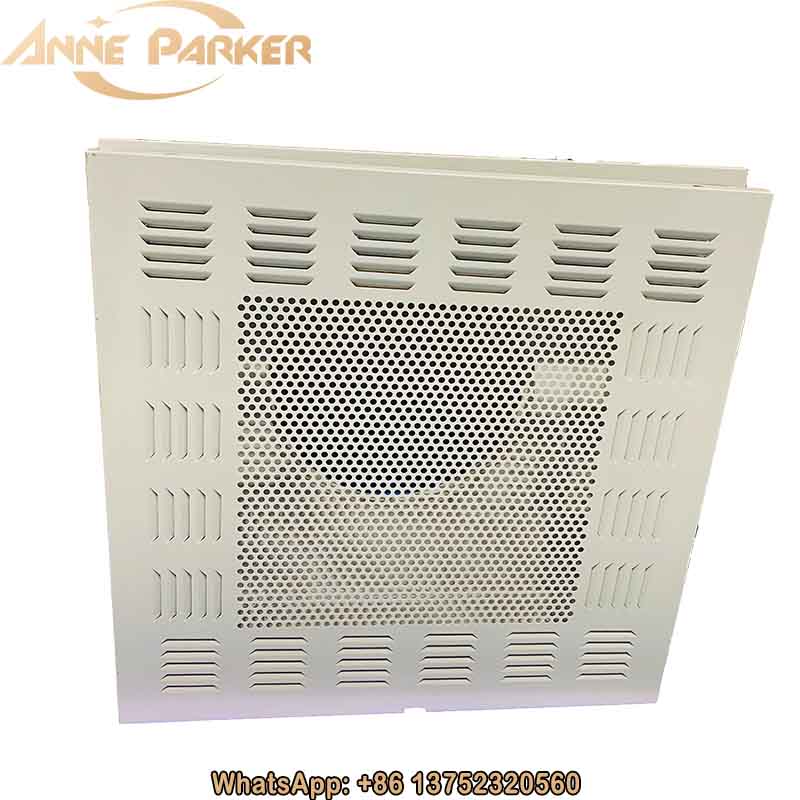

HEPA Terminal Filter Housing Plenum Box
In the biopharmaceutical clean workshop, GMP regulations B, C, D class area
Class B: refers to the background area of Class A clean areas for high-risk operations such as aseptic configuration and filling.
Class C and D: refers to the clean areas of less important operational steps in the production of sterile drugs.
Box hepa filter at the end of B/C/D class area in life science industry; According to customer needs to provide a variety of grades of hepa filter housing box for customers to choose.

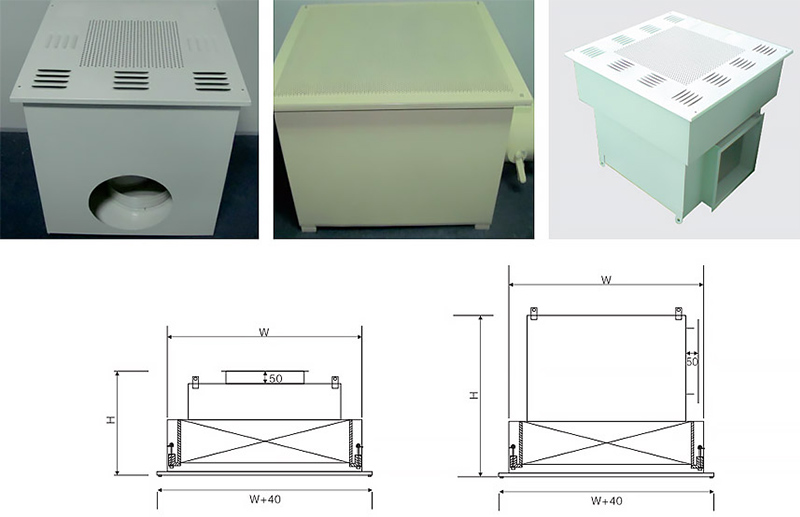

HEPA terminal box Technical parameters
|
Model |
Rated air velocity(m³/h) |
HEPA filter size W*H*D |
External dimension W*L*H/h |
Blast pipe flange size A*B |
Ceiling opening size W*L |
|
|
Sidewall air supply |
Ceiling air supply |
|||||
|
AN-320A |
AN-320B |
500 |
320*320*90 |
370*370*500/400 |
200*200 |
380*380 |
|
AN-484A |
AN-484B |
1000 |
484*484*90 |
534*534*500/400 |
320*200 |
544*544 |
|
AN-610A |
AN-610B |
610*610*69 |
660*660*500/400 |
320*200 |
670*670 |
|
|
AN-726A |
AN-726B |
1500 |
726*484*90 |
776*534*500/400 |
400*200 |
786*544 |
|
AN-630A |
AN-630B |
630*630*90 |
680*680*550/400 |
320*250 |
690*690 |
|
|
AN-915A |
AN-915B |
915*610*90 |
965*660*550/400 |
500*250 |
975*679 |
|
|
AN-968A |
AN-968B |
2000 |
968*484*90 |
1018*534*500/400 |
500*200 |
1028*544 |
|
AN-1220A |
AN-1220B |
1220*610*90 |
1270*660*550/400 |
630*250 |
1280*670 |
|
|
AN-945A |
AN-945B |
2200 |
945*630*120 |
995*680*550/400 |
500*250 |
1005*690 |
|
AN-1260A |
AN-1260B |
3000 |
1260*630*90 |
1310*680*550/400 |
630*250 |
1320*690 |
Note: 1. If the user needs a thermal insulation layer inside the HEPA filter plenum box, please indicate it in the contract. 2. If you need a convex diffuser, please indicate.
