Core parameters:

The Xenon light pass box stainless is equipped with a closed-loop sealed rectangular ultra-strong nanocatalytic magnetic lamp on the top, featuring a power of 200W, a specific wavelength of 185--254nm, an operating temperature range of -25°C to 10°C, and a UV intensity ≥1000μW/cm. It is fitted with a specially tuned dedicated power system to extend the lifespan to ≥60000H.

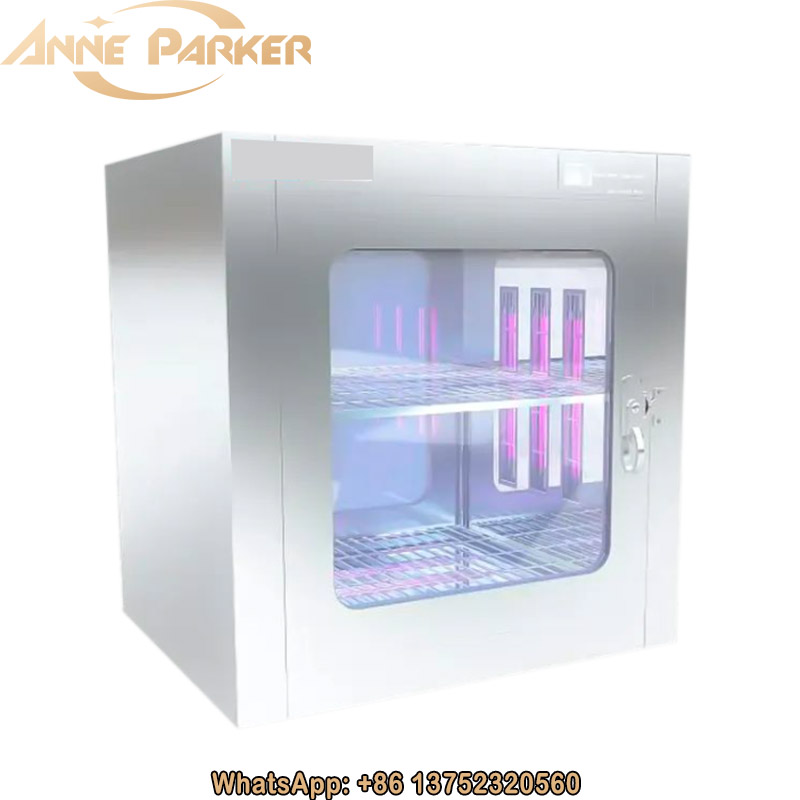

The pass box uv light is equipped with three sets of built-in high-energy pulse sterilization components, each comprising three pulse sterilization lamps. Each lamp has a rated power of 1KW per lamp, a rated power supply of 2KV per lamp, and a luminous maintenance ≥95%, an alternating flash with a flashing frequency of 2-3 times per second, achieving 360° sterilization without dead angles. Additionally, each set is fitted with a specially tuned dedicated power system to extend the lifespan to ≥20000H.

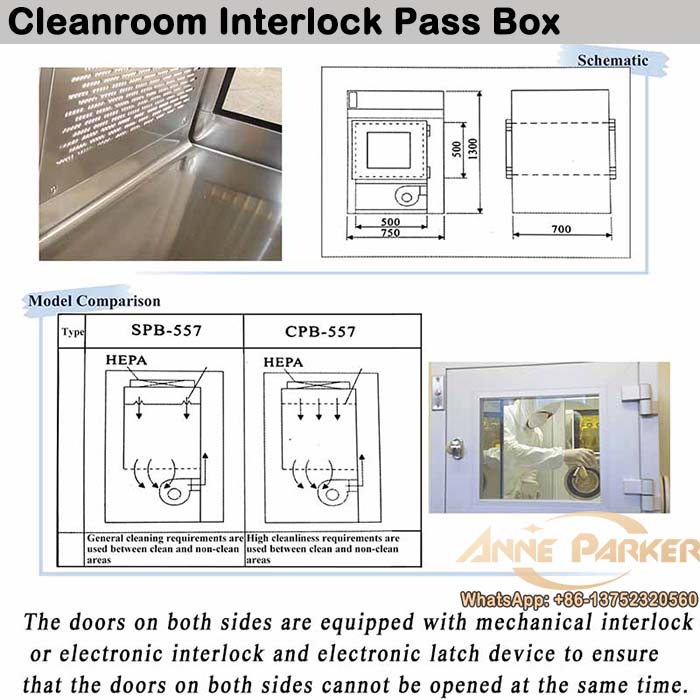

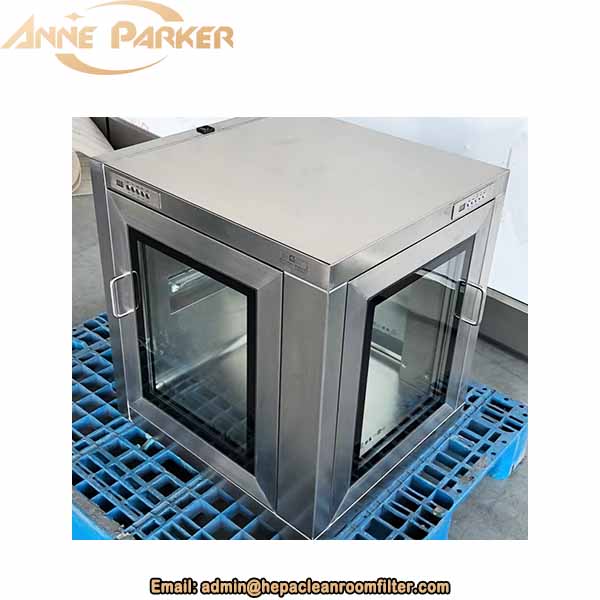

Cleanroom interlock pass box adopts a dual-door electronic interlock device made of stainless steel, equipped with an LCD for displaying the working status, setting sterilization timing, alarm reminder, and other multifunctional parameters.

Sterilization range: Bacteria, viruses, spores, nucleic acids, etc.

Bacterial killing efficiency: Sterilization time ≥5min, total sterilization rate ≥99% (with third-party testing report provided).

Material pass-through time: ≤5min, 360° sterilization without dead angles.

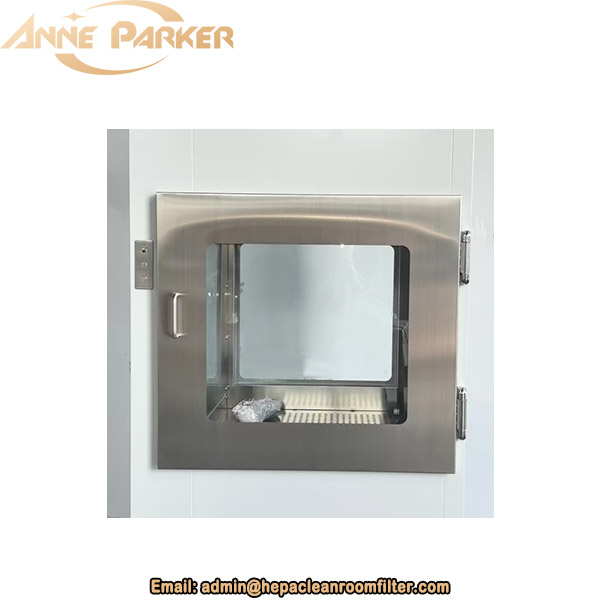

Observation window: With dimensions of 450*450, 8mm thick tempered glass; shock and UV resistant.

Note: All sizes can be customized by us pass box manufacturers.
