Cleanroom Static Types of Pass Thru Box Suppliers

Cleanroom Static Types of Pass Thru Box Suppliers

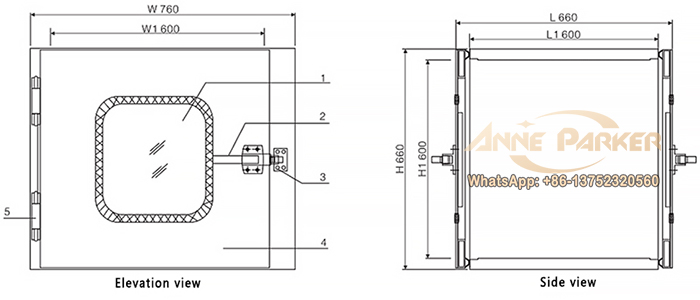

Instructions of Static pass box:

1.    Plexiglass  2. Handle  3. Mechanical lock  4. Door  5. Hinge

Cleanroom pass thru Optional accessories:

1. Intercom device  2. Stainless steel material  3. Ultraviolet light  4. Roller

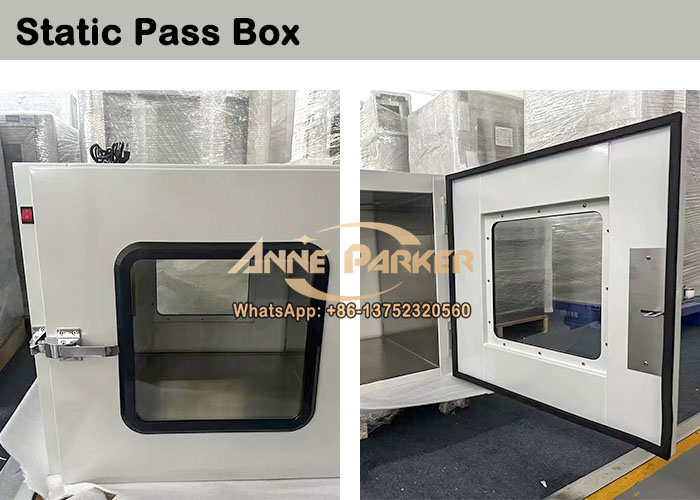

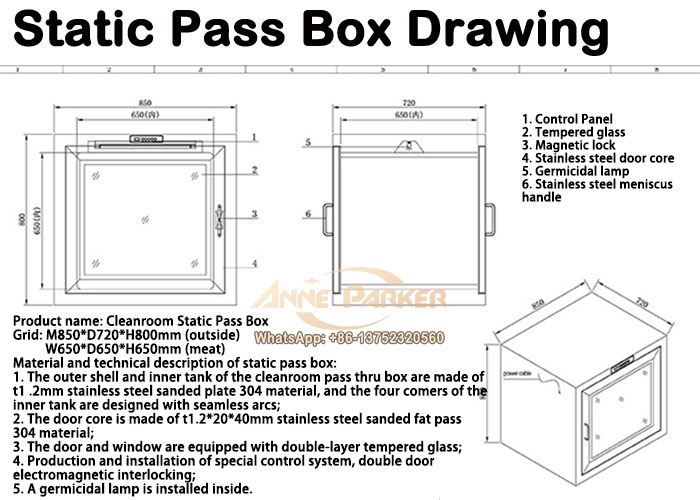

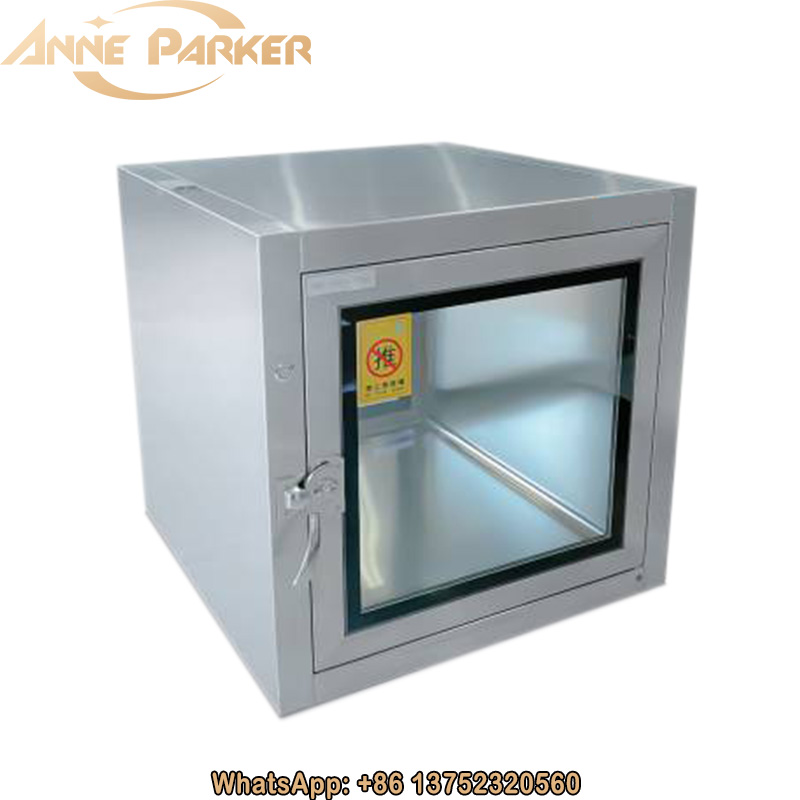

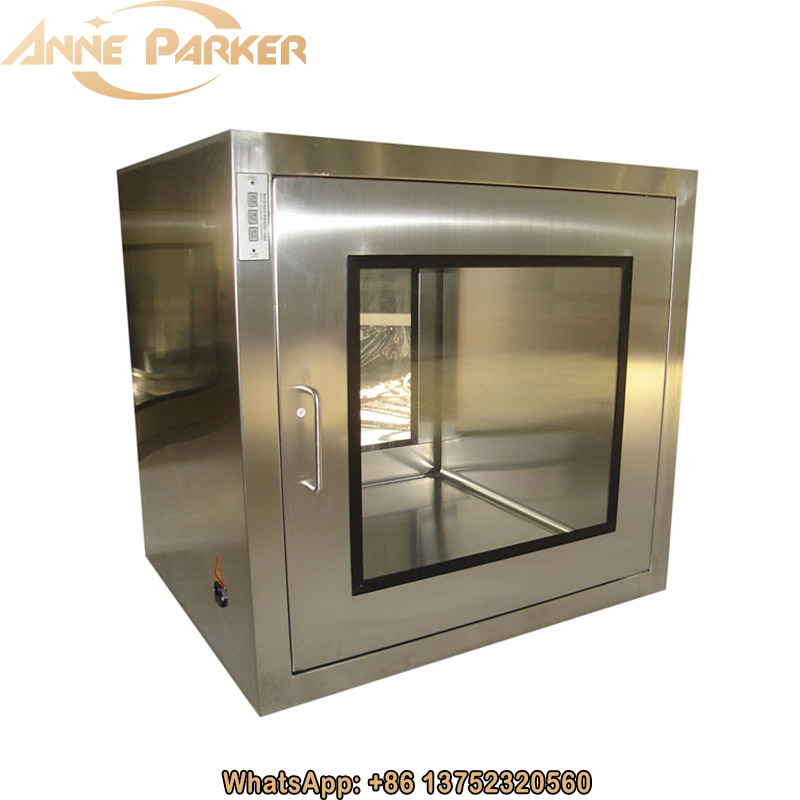

Product name: Cleanroom Static Types of Pass thru Box

Grid: M850*D720*H800mm (outside)

W650xD650 X H650mm (meat)

Material and technical description of static pass box stainless:

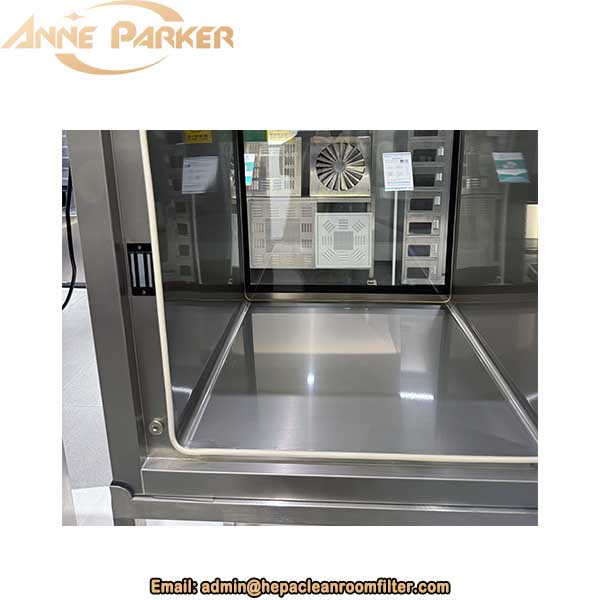

1. The outer shell and inner tank of the cleanroom pass thru box are made of t1 .2mm stainless steel sanded plate 304 material, and the four comers of the inner tank are designed with seamless arcs;

2. The door core is made of t1.2*20*40mm stainless steel sanded fat pass 304 material;

3. The door and window are equipped with double-layer tempered glass;

4. Production and installation of special control system, double door electromagnetic interlocking;

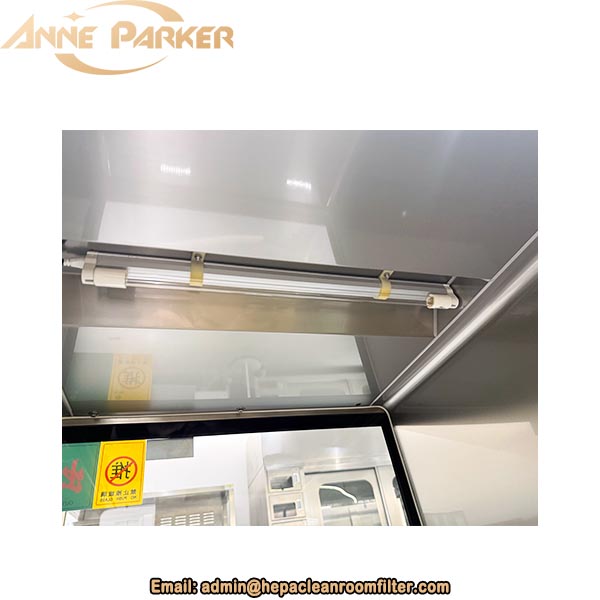

5. A germicidal lamp is installed inside.

Static pass box working principle

Mechanical interlocking device: the internal use of mechanical form to achieve interlocking, when a door is opened, another door can not be opened, you must close another door and then open another door.

Electronic interlock device: the internal use of integrated circuit, electromagnetic lock, control panel, indicator light, etc., when one of the doors opens, the other door open the light is not bright, telling the door can not be opened, while the electromagnetic lock action to achieve interlock. When the door is closed, the electromagnetic lock of the other door begins to work, and the indicator light will light, indicating that the other door can be opened.

Static and dynamic pass box are the two main types of pass box in pharma.

Types of pass box Technical parameters

Note: Non-standard cleanroom pass thru can be made by professional static pass box suppliers according to customers' requirements.
