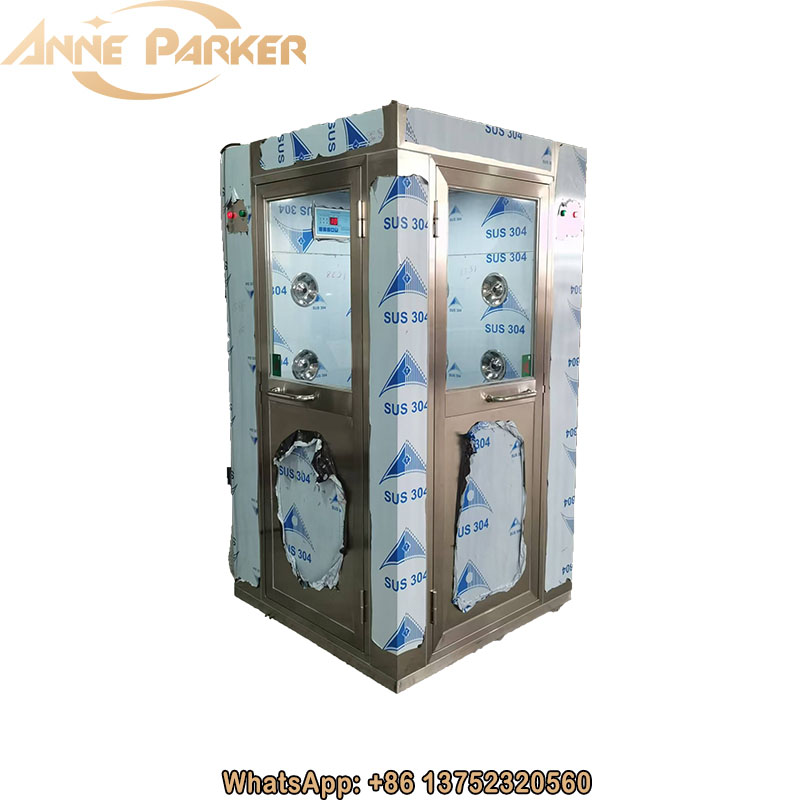

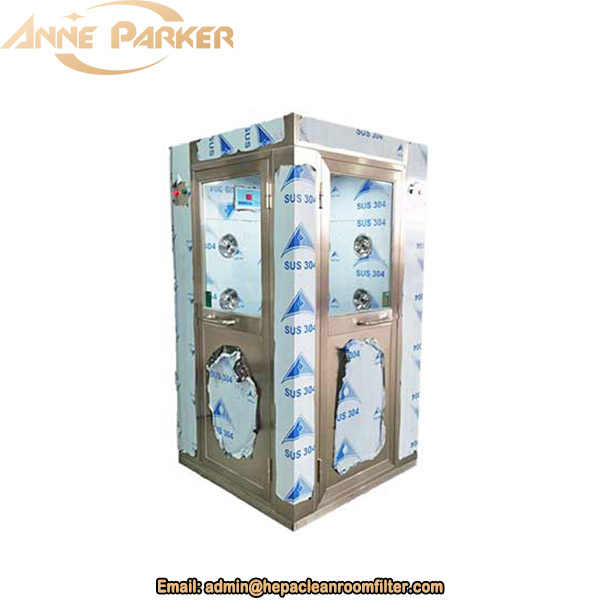

Corner stainless steel intelligent air shower room

Corner stainless steel  intelligent  air shower room

Product name: Corner double-blowing air shower room

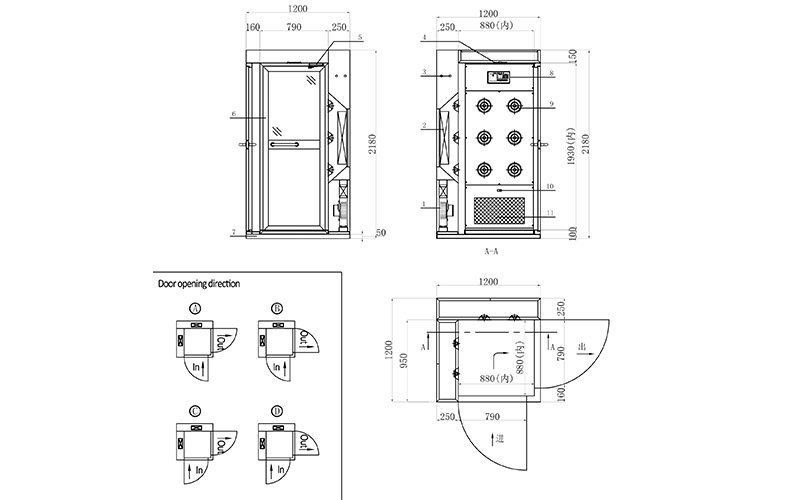

Specifications: W1200×D1200×H2180mm (outside)

W880×D880×H1930mm (inside)

Configuration and technical parameters:

1. Box and inner wall materials:

a. The box and outer bottom frame are made of stainless steel 304 sanded plate (national standard 1.2mm) and bent, with natural sanding on the surface;

b. The inner wall is made of stainless steel 304 sanded plate, with natural sanding on the surface;

c. The inner bottom plate is made of stainless steel 304 sanded plate, with natural sanding on the surface;

2. Double-door electronic interlocking (electric lock, door magnet, relay constitute the interlocking system);

3. Door material:

a. The door frame is made of stainless steel sanded plate 304#;

b. The door core frame is made of t1.0×30×60mm stainless steel sanded flat pass 304# material welding;

c. The upper window of the door core is made of t5.0mm transparent tempered glass;

d. The lower sealing plate of the door core is made of 304# stainless steel sanded plate;

4. Power supply: 3P/AC380V/50Hz/2.5KW.

Corner stainless steel  intelligent  air shower room Product functions:

1. Used for the entry and exit of personnel or goods between high-level clean areas and low-level clean areas,

to prevent unclean airflow from entering high-level clean areas;

2. A shower purification device is set up in the work area to eliminate dust attached to the surface of people, and it has the function of an airlock;

3. English voice prompts, automatic control, infrared sensing, automatic spraying on both sides;

4. The nozzle shower wind speed ≥ 22m/s, the shower time 10-99 seconds adjustable;

5. The door closer device ensures that the door body cannot open automatically when it is not in operation;

6. The interlocking device ensures that the doors on both sides cannot be opened at the same time in the working state, which is safe and reliable;

7. The bottom surface of the air shower room is made of stainless steel plate,

which does not produce dust, is wear-resistant, corrosion-resistant, and easy to clean;

8. The door glass window can be used to visit the situation in the work area at any time, which is convenient to use;

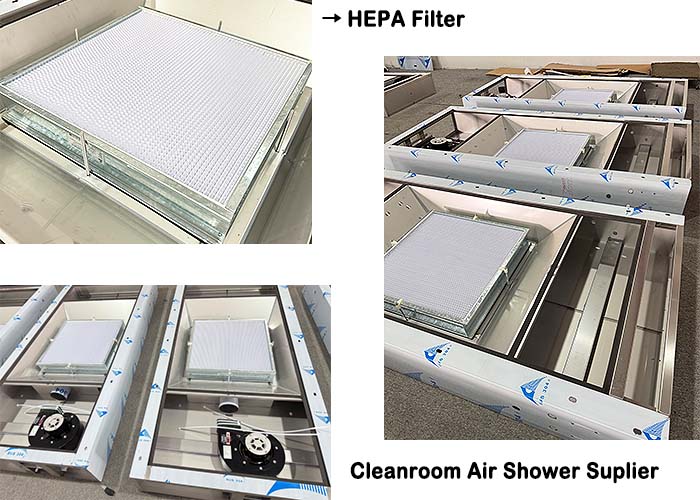

9. The efficiency of the high-efficiency filter is 99.95%@0.3um;
