Air shower unit fully auto-controlled by computer,
2 mechanical interlocking doors,
Automatically blow and shower.

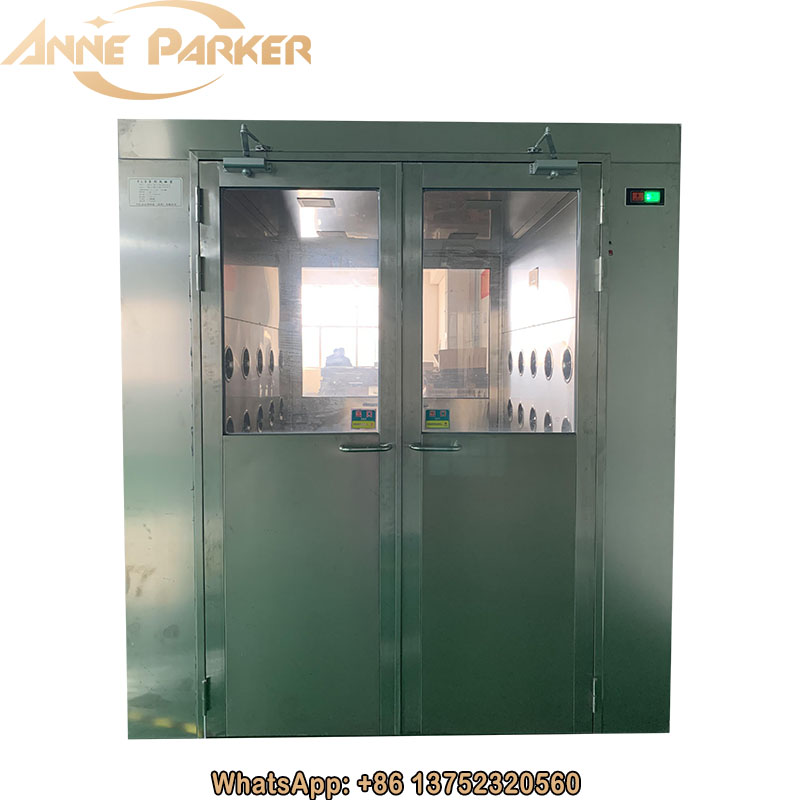

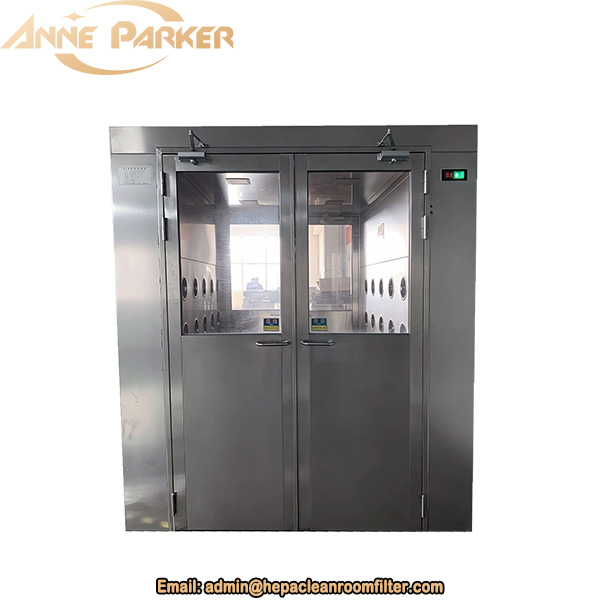

Stainless Steel Filter Air Shower Unit in Pharmaceutical Industry
Filter air shower Instructions:

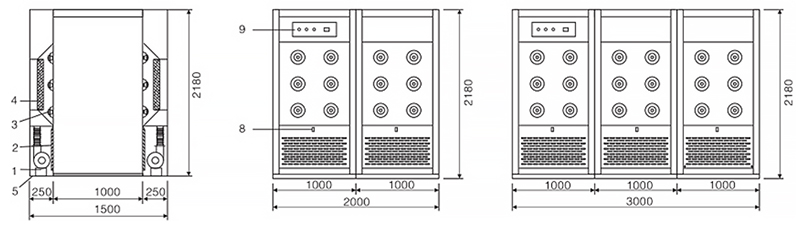

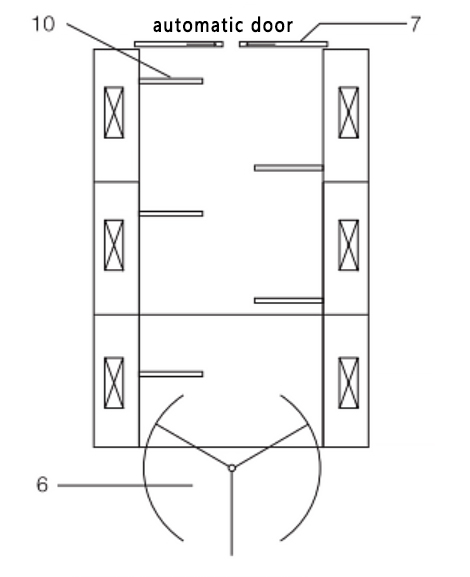

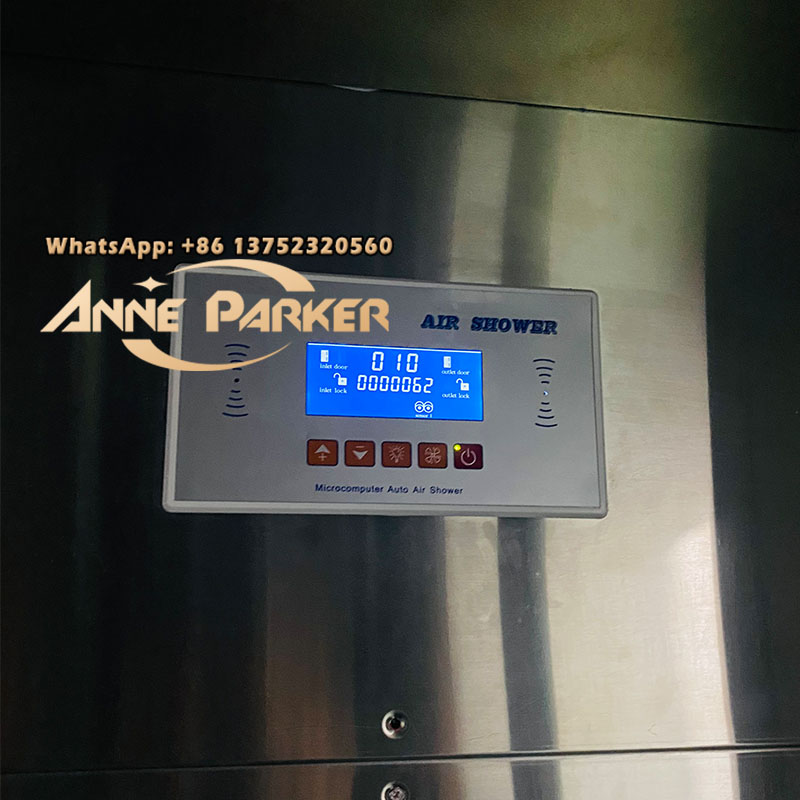

1. Double-speed fan 2. Primary efficiency filter 3. Stainless steel nozzle (with protection net) 4. HEPA filter without partition 5. Anchor bolt (M2) 6. Revolving door 7. Stainless steel automatic door 8. Infrared sensor 9. Control panel (with plexiglass cover) 10. Stainless steel guardrail (optional)
Note: Air shower in pharmaceutical industry. Revolving door brand different installation sizes are slightly different, need to be determined according to the specific revolving door brand. Field installation space.
Stainless steel air shower unit Technical parameters
|
Model |
AN-1200-1 |
AN-1200-2 |
AN-1200-3 |
|
Dimension size (mm) |
W1500*L1000*H2180 |
W1500*L2000*H2180 |
W1500*L3000*H2180 |
|
Air shower size (mm) |
W1000*L1000*H1980 |
W1000*L2000*H1980 |
W1000*L3000*H1980 |
|
Nozzle wind speed (m/s) |
20~22 |
||
|
Nozzle number |
12 |
24 |
36 |
|
Shower time (s) |
The factory setting is 10s, 10~99s adjustable |
||
|
Box material |
1.2mm cold-roll steel sheets, electrostatic spraying on the surface |
||
|
Door material |
Stainless steel |
||
|
Baseplate |
Stainless steel |
||
|
HEPA filter size |
610*610*69*2 |
610*610*69*4 |
610*610*69*6 |
|
Filtration efficiency |
99.99@0.3um |
||
|
Fan power (W) |
750*2 |
750*4 |
750*6 |
|
LED lamp power |
12*1 |
12*2 |
12*3 |
|
Power supply |
380V50Hz |
||
|
Applicable number of persons |
Especially suitable for more persons' frequent entry and exit |
||
Note: Non-standard products can be made according to customer's requirements. The dimensions in the table above do not include the dimensions of the revolving door.
