Fan Filter Unit FFU is a self-powered air supply filter device, with filtering effect of the modular end of the air supply device.

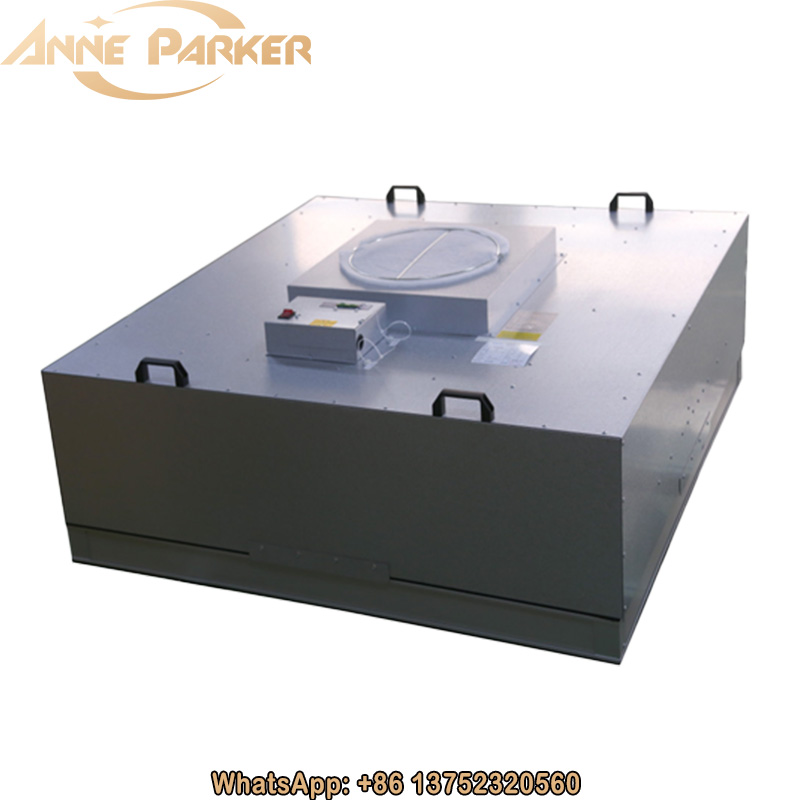

Fan Filter Unit FFU for Clean Room Manufacturer
Product introduction
Fan Filter Unit FFU is a self-powered air supply filter device, with filtering effect of the modular end of the air supply device. The fan filter unit for clean room draws air from the top and is filtered by HEPA, and the filtered clean air is uniformly sent out at a speed of 0.45m/s±20% on the entire outlet surface.
Application
FFU fan filter unit can be modular connection, the use of FFU fan filter unit is widely used in clean room, clean operating table, clean production line, assembled clean room and local 100 level and other applications. The FFU fan filter unit can be used to make simple clean workbench, clean shed, clean transfer cabinet and clean storage closet.
Functional characteristics

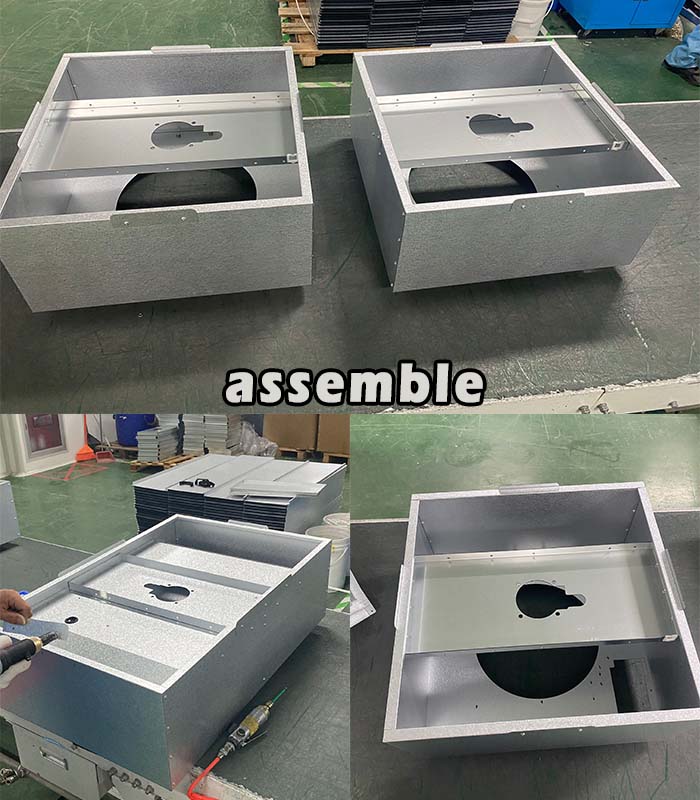

Most of the FFU fan filter units are made of imported environmental protection aluminum-zinc plate, never rust, corrosion resistance, light and strong, the box adopts the golden section proportion point design. FFU fan filter unit energy-saving effect is obvious, ultra-low noise, uniform wind pressure diffusion, uniform and stable wind speed of the air surface, low power consumption, low operating cost, working life of more than 50,000 hours.
|
1 |
Part No. |
FFU 1212G-A1U-S-H14-I |
|
2 |
External size (L×W×H) mm |
1175 × 1175 × (225+25) (without filter size) |
|
3 |
Material |
Galvalume |
|
4 |
Power supply |
AC 220V 50Hz |
|
5 |
Maximum power |
≤260W/≤380W |
|
6 |
Rated air velocity |
2000m³/s |
|
7 |
Noise |
≤58dB(A), (0.45m/s, 1.5 meters away from the air outlet) |
|
8 |

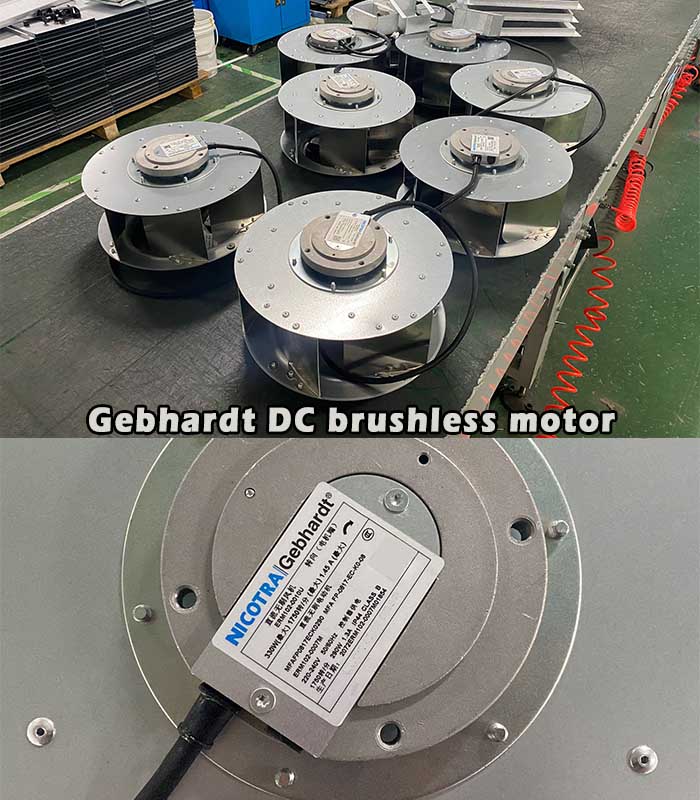

Blower |
Xiangming |
|
9 |
Motor insulation class |
Grade B |
|
10 |
Motor protection class |
IP42 |
|
11 |
Filter size and material |
1170*1170*70mm, fiberglass |
|
12 |
Filter connection mode |
Dead weight seal |
|
13 |
Filtration efficiency |
≥99.995％ (@0.3μm) |
|
14 |
Initial resistance |
≤120Pa (0.45m/s) |
|
15 |

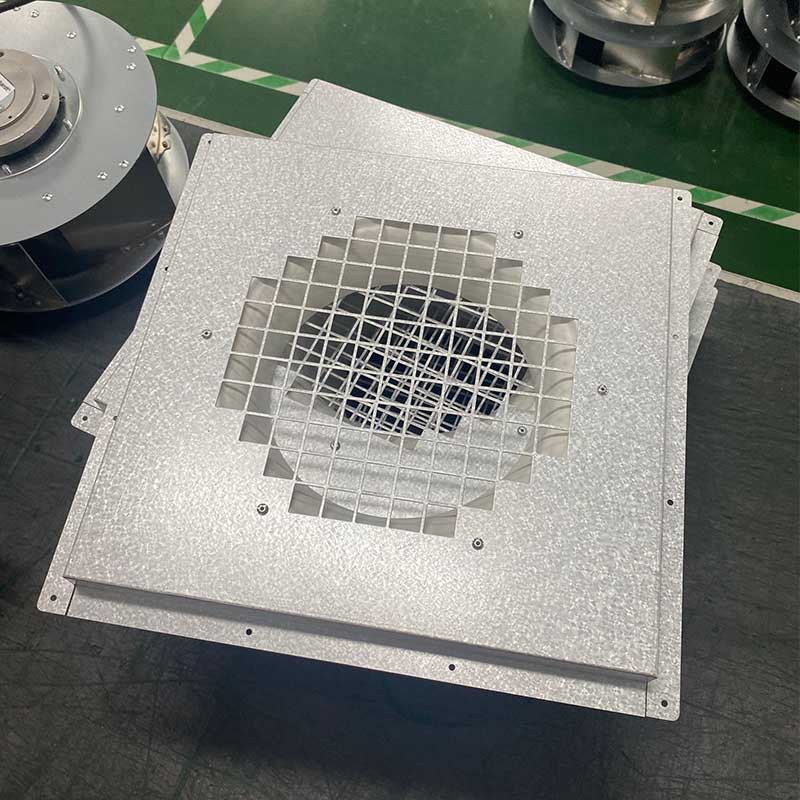

HEPA face mesh |
Steel mesh plate sprayed with plastic mesh |
|
16 |
HEPA seal |
EVA |
|
17 |
The way of control |
Hand knob stepless variable speed / Computer system control |
|
18 |
Group control system function |
1. Computer group control, including group control controller and complete software, control cabinet; Real-time monitoring of FFU operating status. 2. The operating status of FFU has a historical record, can be set to work mode, night mode, holiday mode, etc., can automatically control the switch and speed of FFU. The system can realize the FFU start, stop, adjust the motor speed, adjust the air volume control (single, single group, all or any box control); Real-time monitoring FFU running status, speed value, fault alarm display, etc. |
FFU fan filter unit is controlled by non-contact induction type three-speed speed regulation developed by the company, and the circuit is controlled by electrical switch, which is safe and stable. Flexible and diversified configuration In addition to standard models, we can produce non-standard products of different specifications according to customer needs. Such as: air pipe connection flange, filter screen, box material changes. The humanized design unit is equipped with stainless steel handles to make handling and installation more convenient and fast.
As fan filter unit manufacturer, all products can be customized according to customers' require.
