Cold Evaporation Low Temperature VHP Pass Box

Cold Evaporation Low Temperature VHP Pass Box

Although the traditional vaporized hydrogen peroxide (VHP) pass box has the advantages of low temperature transmission, sterilization effect reaching 6-log kill rate, good material compatibility, easy decomposition, no harmful residue, and final decomposition into water and oxygen, there are still major shortcomings:

1. the sterilization cycle of the VHP pass box is still too long, generally 1.5 hours for small cabins, about 3 hours for large cabins, and the time cost is too expensive.

2. The VHP pass box changes 30% hydrogen peroxide into hydrogen peroxide gas through high temperature flash. During the entire sterilization process, the temperature of the pass box will rise by 5℃-15℃, which is not suitable for the transfer of biological products.

3. the use of 30% hydrogen peroxide solution, which is a dangerous chemical, flammable and explosive, and the purchase of transportation and storage need to go to the local department for record.

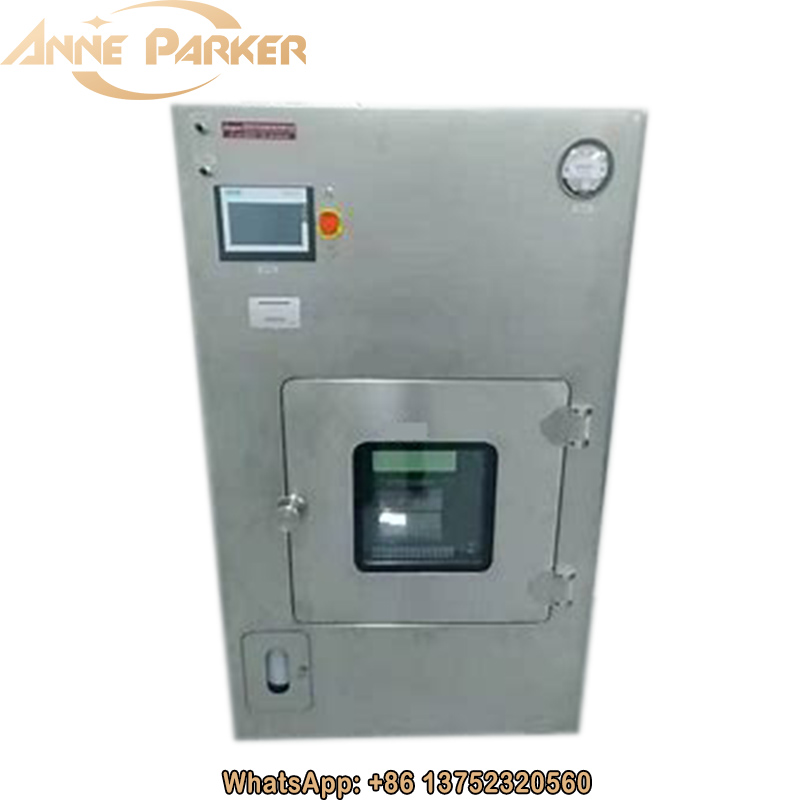

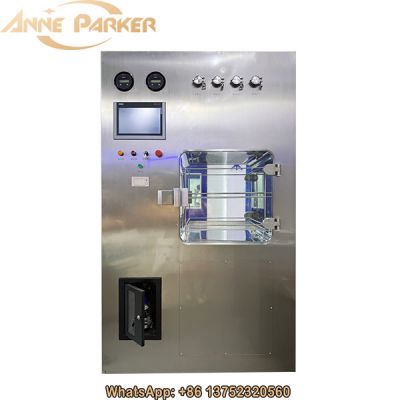

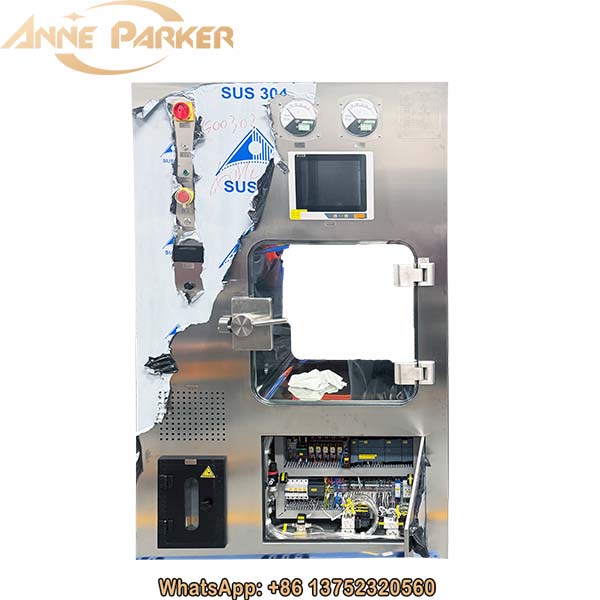

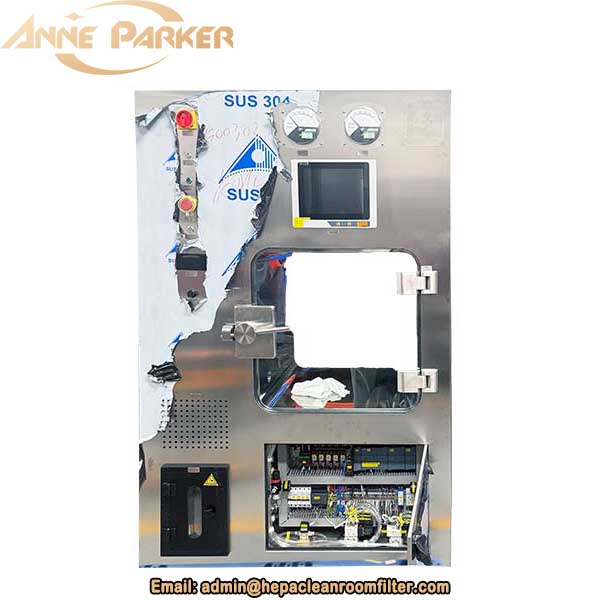

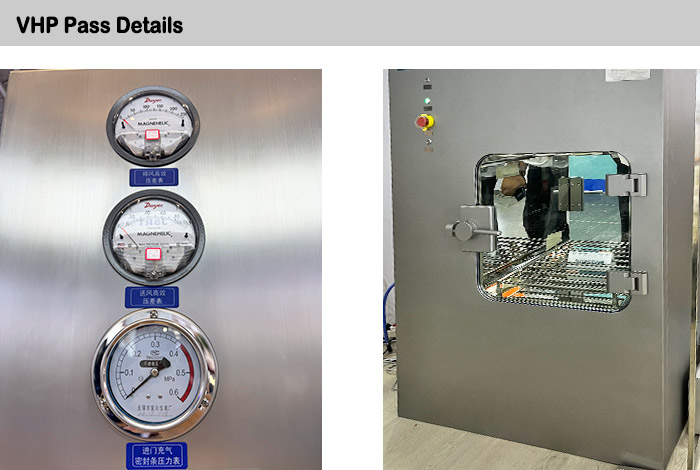

VHP low temperature pass box

In order to solve these problems of VHP pass box, the new cold evaporation hydrogen peroxide pass box independently developed by our company, through cold evaporation technology, the 7% concentration of hydrogen peroxide sporicide from liquid phase to gas phase, not only inherits all the advantages of VHP pass box, but also reduces the sterilization cycle of hydrogen peroxide pass box to less than 45 minutes, and the residue will be less than 1PPM. The whole sterilization process is carried out at room temperature without heating.

1. working power supply: AC220±22V, 50Hz±1Hz

2. power: 1500W

3. volume: customized

4. gasification temperature: ≤100℃

5. noise: ≤68dB (A)

6. Sterilizer: 7% hydrogen peroxide solution

7. Killing rate: The killing rate of thermophilic adipocyte and black variant of Bacillus subtilis is 6-log

8. Sterilization cycle: ≤50min

9. Weight: about 100kg

10. air volume: ≤500m3/h

11. high efficiency filter: H14 level

It has all the advantages that the VHP pass box should have.

1. the use of cold evaporation technology, 7% hydrogen peroxide sporicide from liquid phase to gas phase, sent to the pass box sterilization, no temperature rise, sterilization fast.

2. The sterilization cycle of small cabin (within 1m3) is only 30 minutes, and the sterilization cycle of large cabin (3m3) is only 50 minutes, which is only 1/3 of the sterilization cycle of traditional VHP pass box.

3. the cabin adopts 7% hydrogen peroxide solution, which does not belong to dangerous chemicals, and there is no need to file for transportation, storage and use.

4. the sterilization process does not heat up, and the same as initial temperature, suitable for biological products and other products that cannot exceed 26 ° C transfer.

5. suitable for biological products and other products that can not exceed 26℃;

6. for the delivery of sterile apis;

7. used for sterility test laboratory, microbial test laboratory, positive control laboratory, sampling room, material transfer room and other rooms between the material transfer.
