1. Mist air shower Product features:

(1) Used to wash the dust on the workers/spray disinfection;

(2) Spray area set emergency stop switch, no control panel;

(3) The door closing device ensures that the door body can not open itself in the non-operating state;

(4) The bottom of the mist air shower is made of stainless steel grille or square frame, and the bottom is equipped with a water guide plate;

(5) The glass window on the door allows you to check the working area at any time, which is convenient for use.

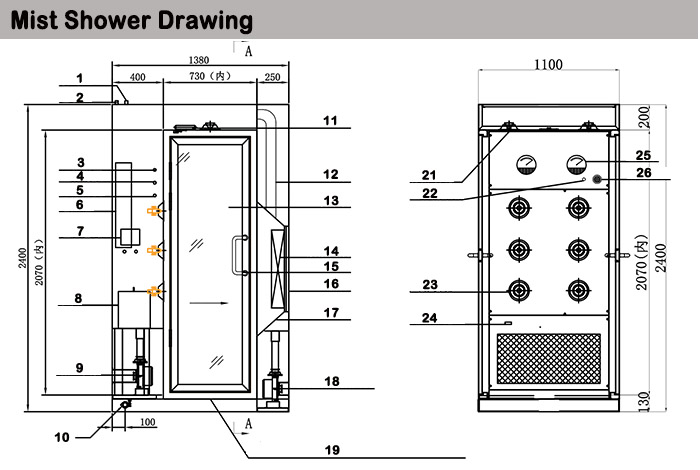

Mist air shower drawing Instruction:

1. Air inlet   2. Water inlet   3. Power indicator   4. Working indicator 5.   Emergency stop switch   6. Electric control cabinet   7. Control panel   8. Water tank   9. Booster pump   10. 50.5 quick mounting chuck   11. Door closers   12. Air duct   13. Observation window   14. Gel seal HEPA filter   15. Door core   16. Box   17. Plenum   18. Moisture-proof and anti-corrosion blower   19. Bottom with grille or square shelf and water tray   20. Mist air shower spray   21. Work light   22. Air shower spray   23. Photoelectric sensor   24. Differential pressure meter   25. Emergency stop switch

2. Mist air shower Equipment parameters:

(1) Power: 380V 50Hz 3.0KW

(2) Water inlet pipe: G1/2 external teeth - water supply (purified water)

(3) Gas pipe: 8 quick connector - compressed air: 6KG

(4) Drain port: 50.5 chuck

(5) Water, electricity and gas are all supplied from the top of the mist air shower equipment

3. Mist air shower Working principle:

(1) The process of workers entering the mist air shower room: first open the front door, enter the mist air shower room and close the door, when touching the photoelectric sensor, the light is turned on, the spray phase starts to work, and after working for a period of time (0-30min adjustable), the spray stops; In the air shower stage, the blowing section starts to work, and after working for a period of time (0-30min adjustable), the fan stops working, and the back door can be opened to go out; The shower only blows air and has no heating function;

(2) One-way operation;

(3) Mist spray stage, induction control, adjustable working time; In the blowing stage, the blowing starts after the end of the mist spray, and the spraying time is adjustable.

4. Mist air shower Technical parameters:

Product name: Spray mist air shower room

Specification: W1380×D1100×H2400mm (outside)

                       W730×D960×H2070mm (inside)

Configuration and technical parameters:

(1) Box and inner wall material:

   a. The box and outer bottom frame are made of 304 sanding stainless steel sheet, and the surface is naturally sanded;

   b. The inner wall is made of 304 sanding stainless steel sheet, and the surface is naturally sanded;

   c. The inner bottom plate is made of 304 sanding stainless steel plate with natural sanding surface;

(2) Two-door electronic interlock (electric lock, door magnet, relay interlock system);

(3) Door material:

     a. The door frame is made of 304 sanding stainless steel plate;

     b. The middle window of the door is made of hollow tempered glass;

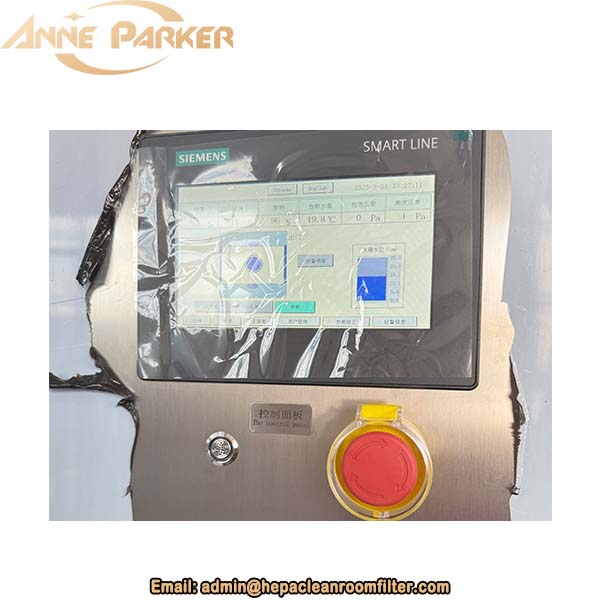

(4) Configure Siemens 7-inch control panel + PLC control system (control screen is only installed in the direction of going out);

(5) Configure 2 sets of Dwyer differential pressure meter, respectively detect high efficiency and initial effect differential pressure;

(6) Configure a set of water tank and booster water pump;

(7) Door opening direction: B direction

(8) Power supply: 3P/AC380V/50Hz/3.0KW.

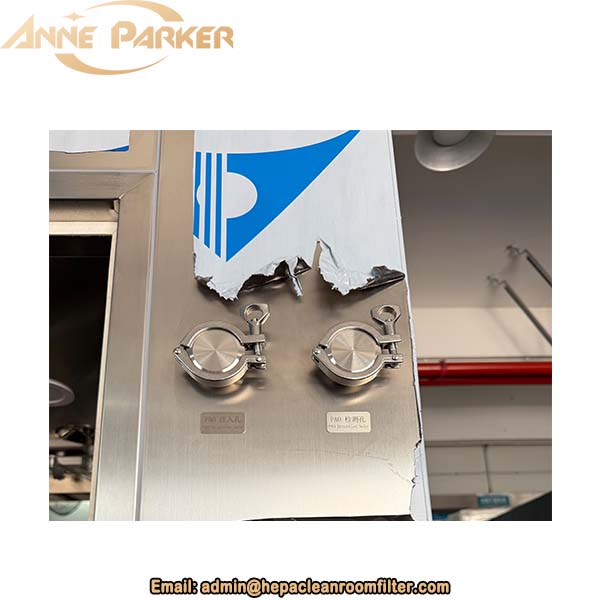

(9) Configure a set of PAO detection and injection port for testing Gel seal HEPA filter
