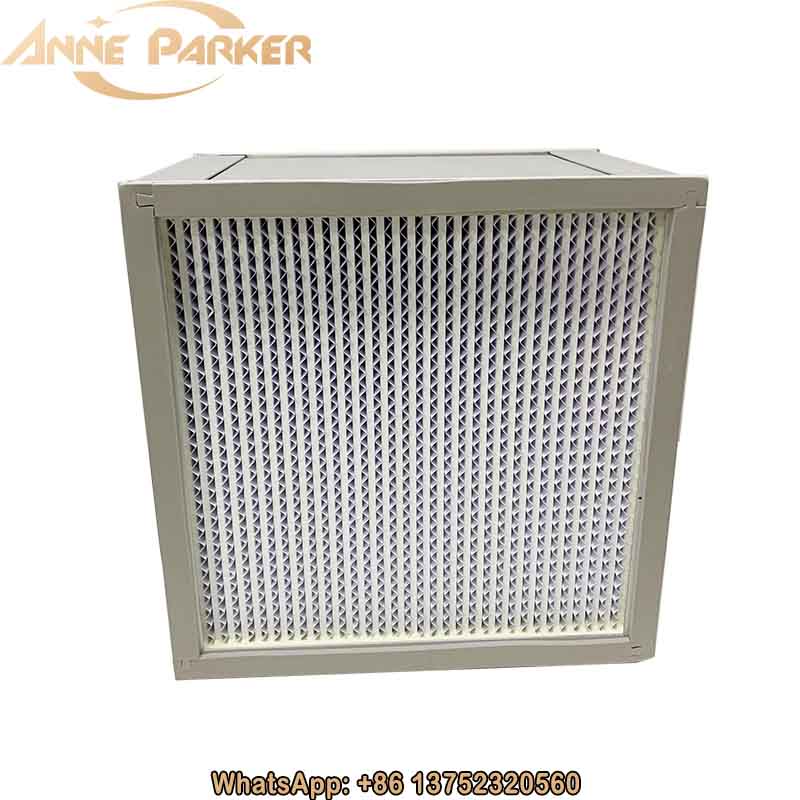

High Temperature Heat Resistant HEPA Air Filter

High Temperature Heat Resistant HEPA Air Filter

High temperature filter is mainly made of high quality and high performance high temperature resistant ultra-fine glass fiber filter paper as filter medium, aluminum foil corrugated sheet as spacer, SUS304 stainless steel plate as frame, sealed with high temperature sealant assembly. HEPA filter high temperature is characterized by high filtration efficiency, low resistance and good high temperature resistance. High temp HEPA filter is mainly used for equipment and systems requiring high temperature air purification such as ultra-clean ovens.

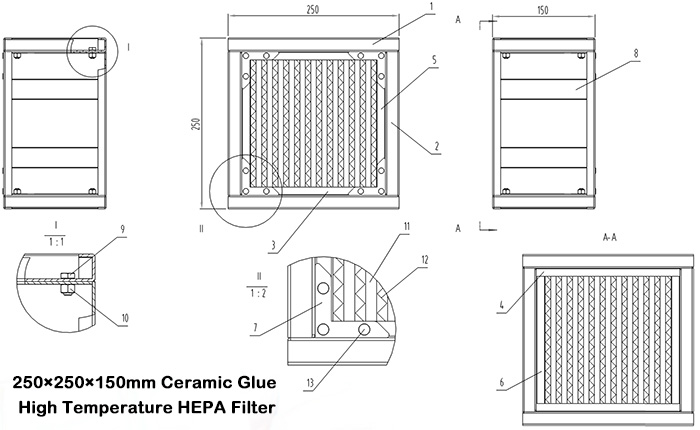

High temperature air filters limit size: width ≤1220mm, length ≥1220mm, thickness 50~300mm. The corrugated bulkhead accurately maintains the fold spacing and maximizes the use of the filter material with minimal resistance. The filter material has 180 folds on both sides to form a wedge-shaped fold, and the filter media has two indentations when bending, so that it opens into a wedge-shaped box fold at the end of the partition, and the wedge-shaped box fold can prevent the filter material from being damaged.

Heat resistant air filter materials and properties:

· Frame material: aluminum alloy profile frame, stainless steel frame

· Filter media: ultrafine glass fiber filter paper

· Sealant: imported high temperature resistant adhesive

· Divider: Aluminum foil

· Efficiency: 99.97%-99.999%(H13, H14) (MPPS)

· Maximum operating temperature: 350℃

High temperature filter product features:

1. The HEPA filter high temperature with 400℃ high temperature resistant uses the deep pleat design, and the corrugated baffle can accurately maintain the pleated layer spacing, and maximize the use of filter media under the minimum resistance.

2. The filter material is folded at 180° on both sides to form a wedge fold layer. The filter material has two indentations when bending, so that it is opened into a wedge box fold layer at the end of the separator.

3. Usually used in high temperature clean oven, high temperature sterilization equipment and high class purification equipment

High temperature air filters application site:

1. Aerospace, electronics, semiconductors, wafers, biopharmaceuticals, hospitals, food processing and other high cleanliness occasions.

2. Terminal of air conditioning ventilation system (terminal filtration and hot air type high temperature oven).

3. High temperature paint spray line.

4. High clean baking booth.

5. High purified baking box.

6. Food baking booth or room.

7. Use with high temperature equipments to kill the germ or virus, such as pharmaceutical factory.

8. Ventilation system with high fire resistant requirement and high temperature operating environment.)
