The body structure includes stereo, integrated, and disassembled types
Installation: Vertical and horizontal installation
Low noise and low vibration design

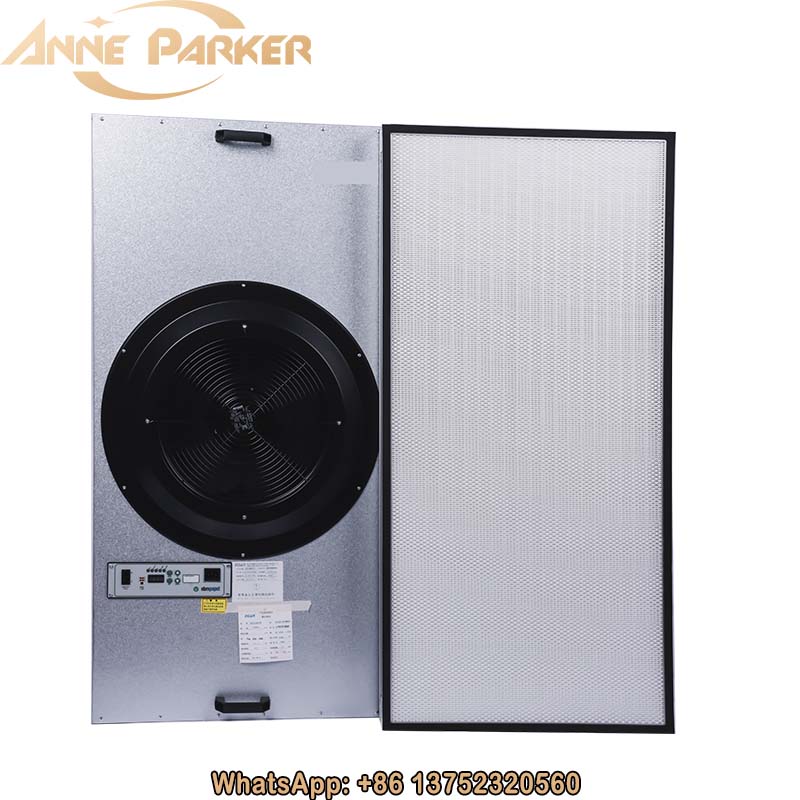

Clean Room Equipment FFU HEPA Fan Filter Unit EFU Supplier
Very low volatile materials
Very low volatile materials are selected to meet the extreme cleanliness requirements of the EFU FFU fan filter unit installation process section. For example, if there are requirements for controlling gaseous molecular contaminants, PTFE filter or chemical filter can be selected.
Structure and installation method
The body structure includes stereo, integrated, and disassembled types.
Installation: Vertical and horizontal installation
Low noise and low vibration design

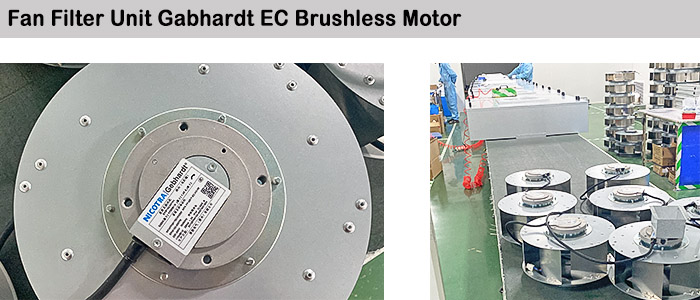

Adopts DC brushless motor with high efficiency and low energy consumption (domestic and EBM to respond to different customer requirements).
Adopts impeller with high efficiency and low noise, with the dynamic balance grade of G2.5.

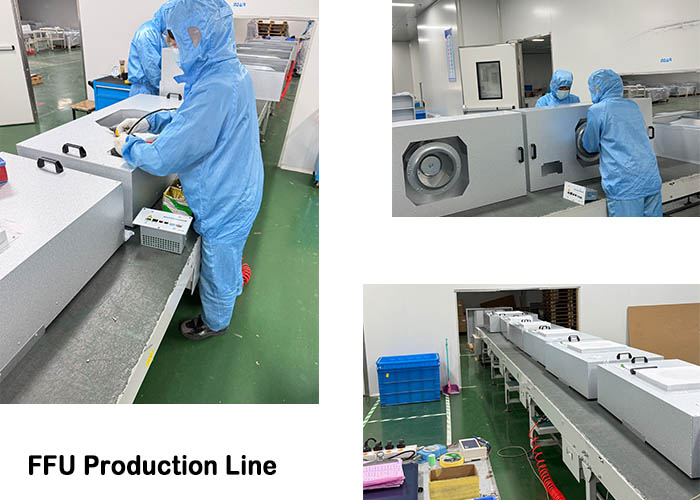

Adopts strict testing process to ensure that each delivered product is 100% qualified.

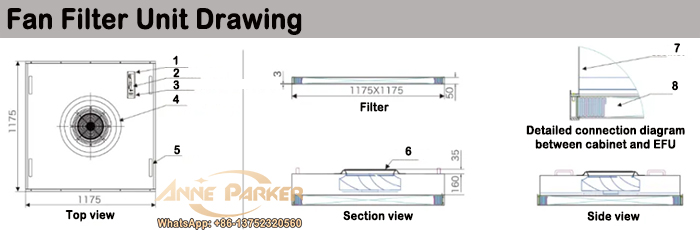

FFU fan filter unit Instruction:
1. Controller 2. LED indicator 3. Communication interface 4. Protective mesh 5. Handle 6. Air inlet 7. Cabinet 8. Filter
Dedicated controller
Stand-alone control: Can be operated even without communication
Control display: The controller can display basic information (speed, fault, address)
System connection: Seamless access to customer control system for real-time "monitoring" of EFU equipment fan filter unit.
History query: Set EFU clean room HEPA fan filter unit status to LIST, so customers can freely query the operation and status records in any time period.
It can be used as the industrial standard Modbus RTU
Ultra-thin cabinet design
Suitable for use in various space, with the cabinet size as small as 4x4: 160 mm and 2x4:110 mm
Light weight, easy installation and convenient maintenance
A variety of materials available for selection (stainless steel, aluminum, and galvanized iron).
Diversified design
Customizability: Customize the shape and size according to customer needs by us fan filter unit supplier.
Flexibility: Disassembly and maintenance can be completed from within the STOCKER and EQ.
Stability: Motor bearing is normal after running 100000H.
Intelligence: The FFU fan filter unit is compatible with customers' systems and can realize real-time monitoring around the clock.
Fool-proof: The equipment fan filter unit is equipped with unique power and communication terminal interface to avoid wiring errors.

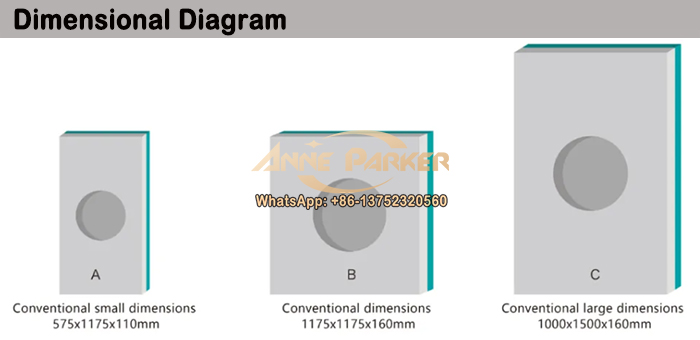

Dimensions
|
Product |
2*4 |
4*4 |
3*5 |
|
Dimensions(mm) |
575*1175 |
1175*1175 |
1000*1500 |
|
Cabinet height(mm) |
110+35 |
160+35 |
160+35 |
|
Cabinet material |
GAL (SUS/AL optional) |
||
|
Power type |
220V 1PH 50Hz |
||
|
Total static pressure @0.45m/s(Pa) |
360 |
275 |
260 |
|
Air speed(m/s) |
0.3-0.5 |
||
|
Power consumption(W) |
60-95 |
100-175 |
110-190 |
|
Current (A) |
0.29-0.44 |
0.47-0.80 |
0.52-0.87 |
|
Filter/thickness(mm) |
Optional (H13-U17)/50 |
||
|
Efficiency |
H14 |
||
|
Noise(dBA) |
44-48 |
45-51 |
46-53 |
EFU installation diagram
The clean room HEPA fan filter unit EFUs are installed in cleanrooms to improve the cleanliness of critical process sections within the micro-environment and can be installed horizontally or vertically
