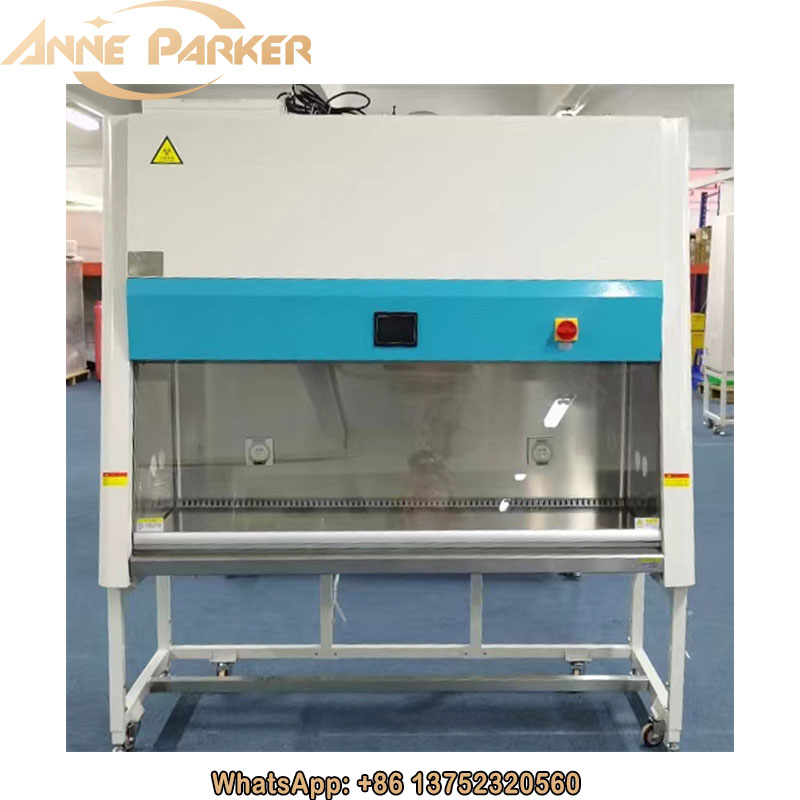

Class II Biological Safety Cabinet Class 2 Type B2
1. In line with the requirements of the Chinese CFDA YY0569 standard, the class 11 biosafety cabinet is classified as type B2.
2. Vertical laminar flow negative pressure model, 100% of the air is filtered out to the room or connected to the exhaust system.
3. Hd LCD color human-machine dialogue interface, touch key operation, real-time display of wind speed, filter operating status, and provide fault alarm.
4. The unique DC brushless constant air volume fan is more efficient and energy saving, and can realize stepless speed regulation and effectively extend the service life of the filter.
5. Each biological safety cabinet is factory tested for safety and product performance in accordance with international standards.
Technical parameters
| Model |
AN-BSC-1200IIB2 |
AN-BSC-1500IIB2 |
AN-BSC-1800IIB2 |
AN-BSC-2000IIB2 |
||
|
Cleanliness class |
ISO 4 (class 10) |
|||||
|
Supply and exhaust air filters |
ULPA filters |
|||||
|
Filter level / Filtration efficiency |
≥99.9995%, @0.12um |
|||||
|
Descending wind speed (m/s) |
0.35 |
|||||
|
Inflow wind speed (m/s) |
0.55 |
|||||
|
Noise (dB) |
58~65 |
|||||
|
Power supply |
AC 220V, 50Hz |
|||||
|
Vibration |
center position of the table≤5um |
|||||
|
Shift door opening height |
200mm |
|||||
|
Airflow mean bioprotection |
Personnel protection |
a. Total colony count in the impact chamber sampler≤10CFU/one time; b. The total number of colonies in the slit sampler≤5CFU/one time |
||||
|
Product protection under test |
Total plate count≤5CFU/one time |
|||||
|
Cross infection protection |
Total plate count≤2CFU/one time |
|||||
|
Maximum rated power (including spare socket) |
2.0KVA |
2.0KVA |
2.0KVA |
2.0KVA |
||
|
Rated power (without spare socket) |
0.85KVA |
0.85KVA |
0.85KVA |
0.85KVA |
||
|
Weight (kg) |
260 |
300 |
360 |
400 |
||
|
Work area size (mm) |
1000*630*630 |
1300*630*630 |
1600*630*630 |
1800*630*630 |
||
|
Dimensions (mm) |
1200*795*2050 |
1500*795*2050 |
1800*795*2050 |
2000*795*2050 |
||
|
Fluorescent lamp specification (W) and quantity |
36*2 |
48*1 |
60*1 |
68*1 |
||
|
UV lamp specification and quantity |
30*1 |
30*1 |
40*1 |
40*1 |
||
|
Illuminance (Lx) |
≥900 |
|||||
|
Material |
Frame material |
electrostatic powder spraying of high quality cold rolled steel plate (Ivory white) |
||||
|
Workspace material |
high quality 304 stainless steel three sides integrated molding |
|||||
|
Exhaust direction |
Flow up |
|||||
