Primary high-efficiency filtration system;
U-shaped files can be installed inside to help people pass through better.
Manual single door, door closer automatic door closing, double door electronic interlocking;

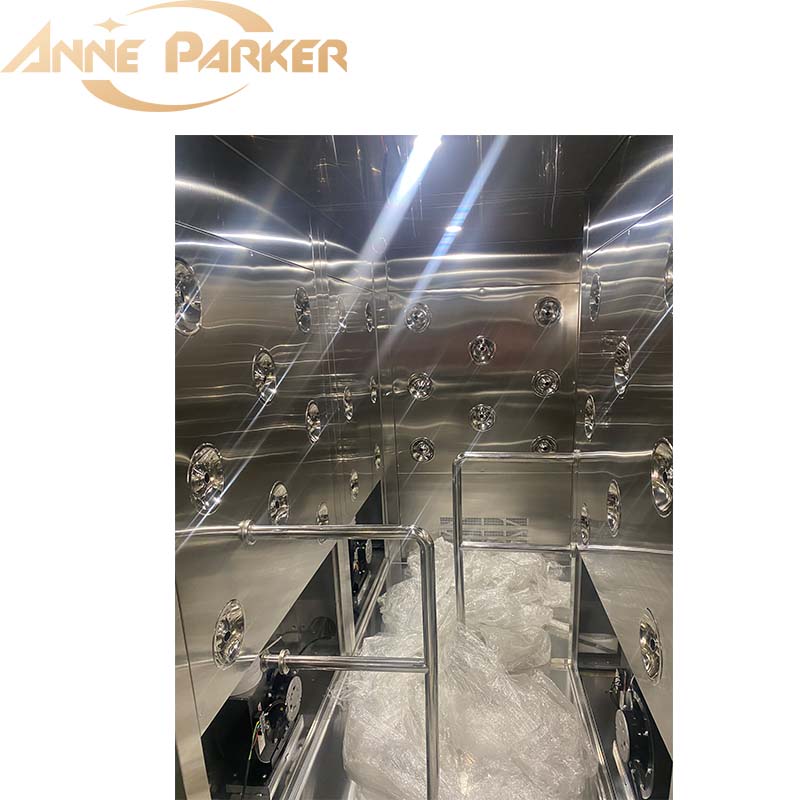

Embedded nozzles with adjustable direction on both sides, nozzle wind speed ≥ 25m/s;
Infrared induction automatic shower,
clean lighting;
Input power. AC 380V 50Hz
1. Air shower room countdown display: double-digit red digital tube display, used to display the time of air shower when working
The setting value and the remaining time of the air shower tunnel are used to display the menu parameters when setting the menu.
2. Outer door light: When the outer door is opened, this light is on (you can check whether the outer door sensor is normal).
3. Induction light: When the human body is in the human induction area, this light is on (you can check whether the photoelectric switch is normal or not)
4. Inner door light: When the inner door is opened, this light is on (you can check whether the inner door sensor is normal).
5. Air shower light: When this light is on, it indicates that the air shower fan has been started automatically and manually.
6. Emergency stop light: When this light is on, it indicates that the system is in emergency stop state.
Illuminating light: When this light is on, it indicates that the lighting light is on, and you can find the light button to turn it off or start it again.
|

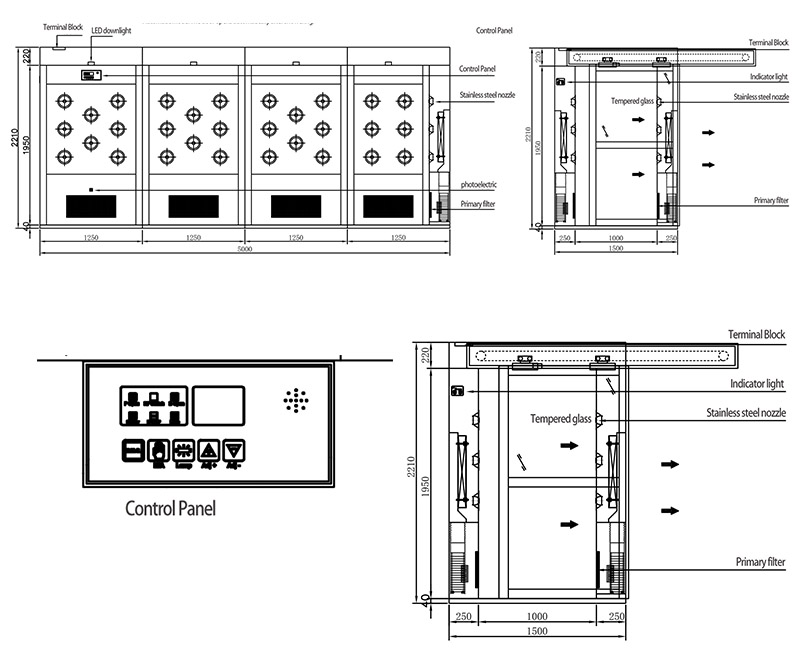

External dimensions |
W 1500*D5000*H2210(MM) |
Door |
SUS 304 framed 5mm tempered glass window |
|
Internal dimensions |
W 1000*D4700*H1950(MM) |
The lower board is SUS 304 board (Ming style single-open automatic door) |
|
|
Body material |
SUS 304 outside, SUS 304 inside |
Power locks |
Sunken electric lock |
|
With SUS 304 base |
Power |
AC 3Ф 4W 1E 380V 50HZ |
|
|

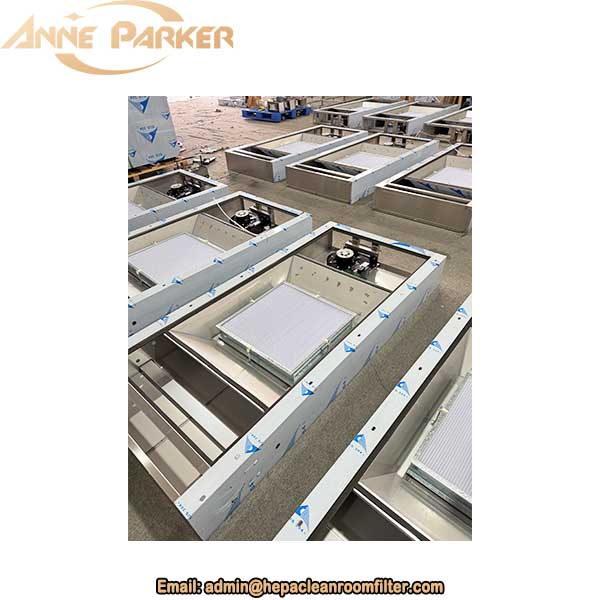

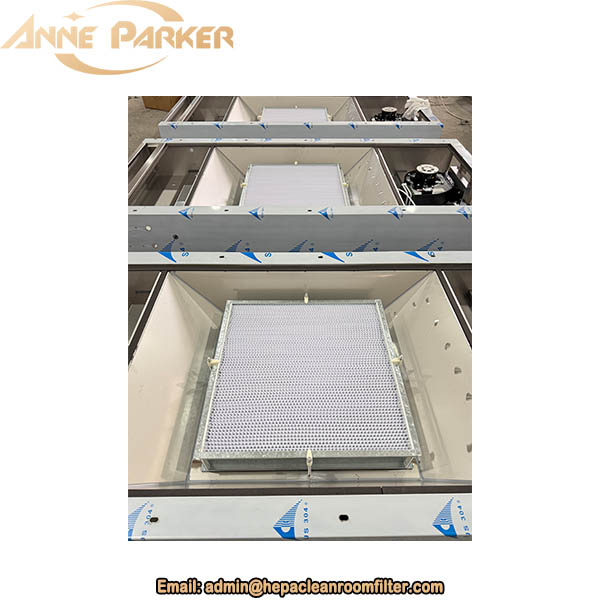

HEPA Filter |
610*760*50 MM, 8pcs |
Total power |
6700W |
|
Efficiency 99.99% @ 0.3μm |
Functions: Single-chip voice control panel, with Time and LED display function selection buttons, automatic, stop, manual, emergency switch, multi-function indicator lights on the front and rear doors, interlock, and other functions |
||
|
Primary filter |
24’’*12’’*1’’ 8 pcs |
||
|
Wind volume |
When spraying 62CM |
||
|
Wind speed |
Approximately 25 m/c or more during spraying |
||
|
Ventilation rate |
When spraying, 405 times/hour |
||
|
Stainless steel nozzle |
In embedded type, the direction can be adjusted arbitrarily, 60 in total |
||
|
Motor |
1HP(750W) 2P*8 |
||
|
Lighting |
LED lights*4 pieces |
||
Control mode:
Manual mode: You need to manually press the button to open the door after showering.
Automatic mode: The door opens automatically after showering.
