The pass box laboratory is a kind of auxiliary equipment for the clean room, mainly used for the transfer of small items between the clean area and the unclean area to reduce the frequency of opening the doors in the clean room and reduce the pollution of the clean room to the minimum degree.

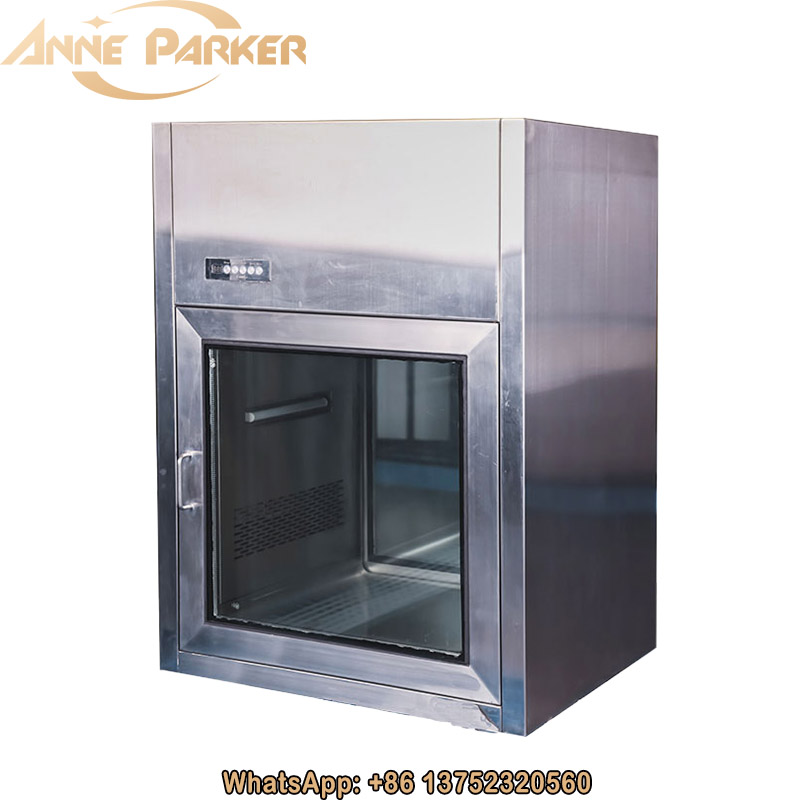

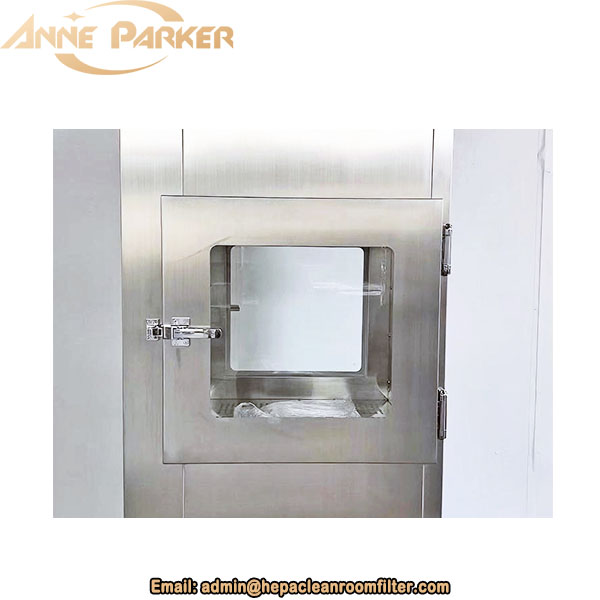

Clean Room Air Shower Pass through Box Laboratory
The clean room pass through box laboratory is designed according to the type of air shower room, the fan quickly blows out the gas, and becomes clean air through the HEPA filter. After the stainless steel nozzles spray the clean air, the airflow speed is up to 20 meters per second or more, which can effectively and quickly remove the dust particles attached to the object’s surface, and the circulating air is filtered and purified by the filters.

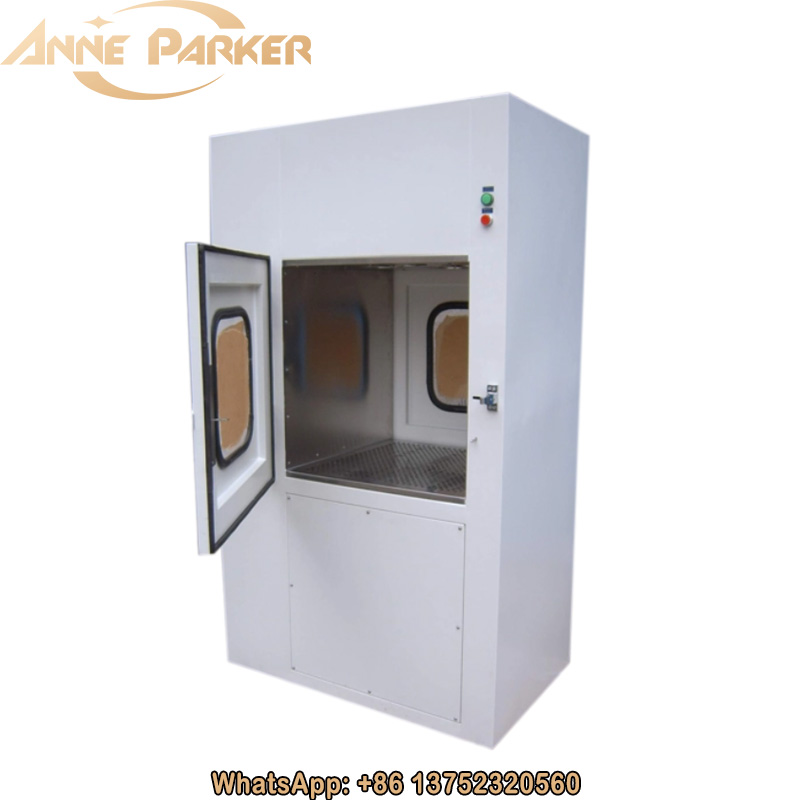

The pass box laboratory is a kind of auxiliary equipment for the clean room, mainly used for the transfer of small items between the clean area and the unclean area to reduce the frequency of opening the doors in the clean room and reduce the pollution of the clean room to the minimum degree. Effectively prevent cross-pollution. The air shower pass box is equipped with electronic interlock and mechanical interlock, and is equipped with ultraviolet germicide lamps and interphones.

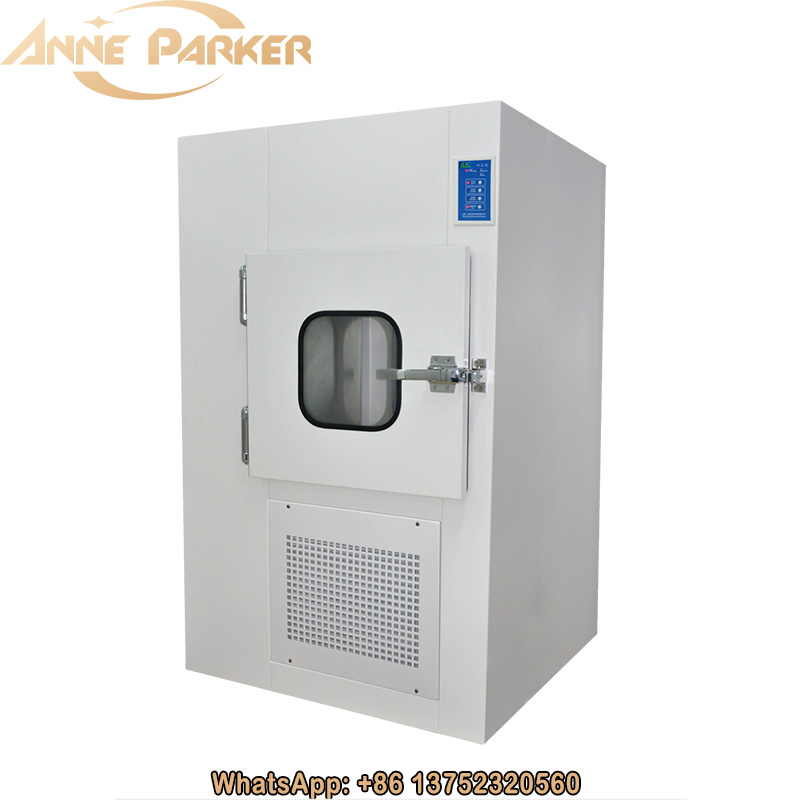

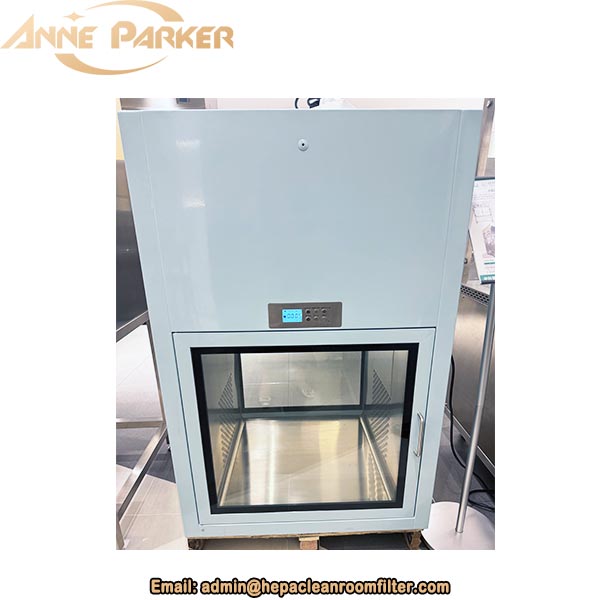

The clean room air shower pass box is added a HEPA filter air supply system and 360 degrees spray without dead angle based on the ordinary static pass box. The ordinary static pass box is suitable for simple item transfer, and the air shower pass box laboratory is more suitable for the use of hundreds and thousands of high clean spaces.
Pass box laboratory Technical Parameters
Size: 1100(H)*800(W)*650(D) mm
Automatic Shower
Gel seal HEPA Filter: Aluminum frame without partitions
Filtration Efficiency: H14 99.99% @0.3μm
Wind Speed: 0.36-0.45m/s

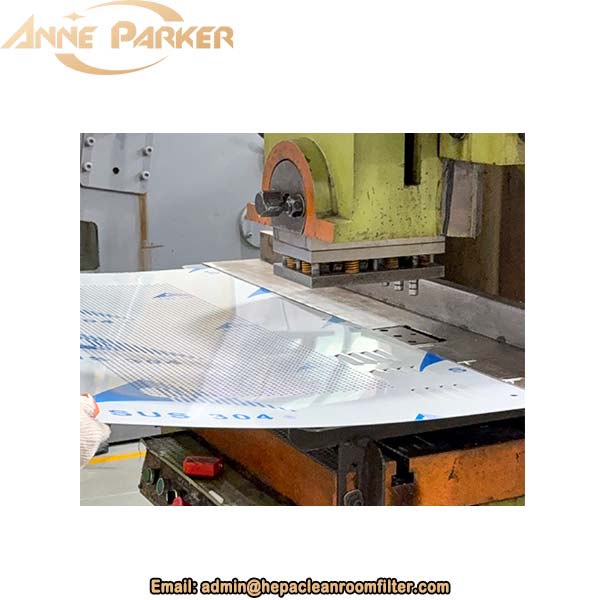

Box Material: 1.2mm/304# sanded stainless steel plate, surface naturally sanded
Inner wall material: 1.2mm/304#sanded stainless steel plate, surface naturally sanded
The operation panel needs to display the blowing time (adjustable from 0-99 minutes) and sterilization cumulative time counting function. The counting time function can only be seen by clicking on the operation interface. Please refer to the manual for specific functions!
Power: 220v/50HZ 0.3Kw
