Instructions:

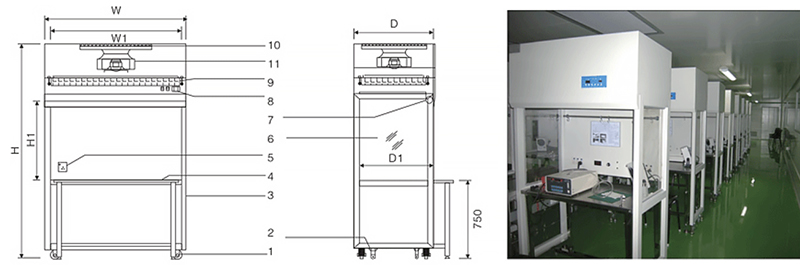

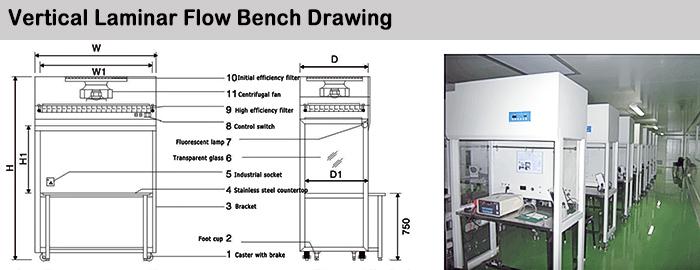

1. Caster with brake 2. Foot cup 3. Bracket 4. Stainless steel countertop 5. Industrial socket 6. Transparent glass 7. Fluorescent lamp 8. Control switch 9. High efficiency filter 10. Initial efficiency filter 11. Centrifugal fan
Technical parameters
|
Model |
AN-1000 |
AN-1350 |
AN-1640 |
AN-1950 |
|
Dimensions (mm) |
W1000*L650*H1750 |
W1350*L650*H1750 |
W1640*L650*H1750 |
W1950*L650*H1750 |
|
Air shower size (mm) |
W820*L610*H600 |
W1270*L610*H600 |
W1560*L610*H600 |
W1870*L610*H600 |
|
Air volume (m/h) |
900 |
1100 |
1500 |
1800 |
|
Wind speed (m/h) |
0.45m/s±20% |
|||
|
Purification class |
Class 100 (ISO1466-1 international standard) |
|||
|
HEPA filter efficiency |
99.99%@0.3um |
|||
|
HEPA filter size |
880*570*69 |
1170*570*69 |
915*570*69 610*570*69 |
915*610*69 |
|
Number of HEPA filters |
1 |
1 |
1-1 |
2 |
|
Bench vibration half peak |
Bench and overall frame are separated without vibration effect (optional) |
|||
|
Surface material |
Sanding stainless steel |
|||
|
Noise |
＜50dB |
＜50dB |
＜50dB |
＜50dB |
|
Noise test location |
20cm in front of the bench and 1.2m above the ground |
|||
|
Power supply |
220V AC 50Hz |
|||
|
Applicable number of persons |
1 |
1-2 |
2-3 |
3-4 |
